MENNEKES 3KRAFT® combination unit 94353RO
MENNEKES 3KRAFT® combination unit 94353RO images3d

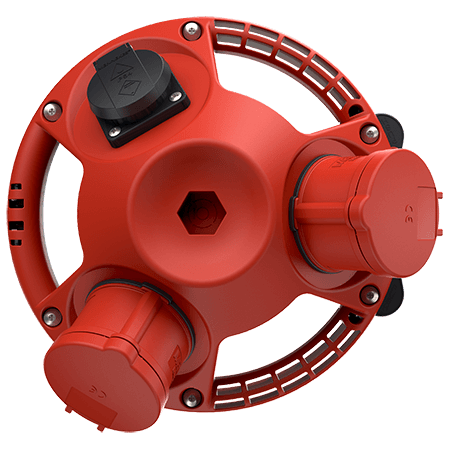

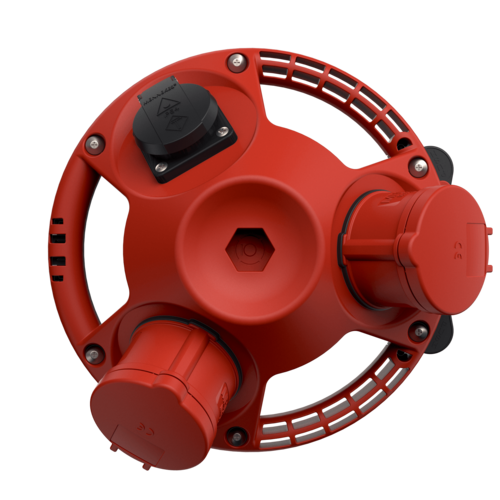

3KRAFT® combination unit 94353RO

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • back box in black
  • hinged cover available in red (RO), yellow (GE) or silver (SI)
  • enclosure and insert made of AMAPLAST
  • Part no.94353RO
  • EAN4015394208006
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

3KRAFT® combination unit 94353RO

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 1
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm² and 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 1200 g
Storage receptacle combination B

Directives

3KRAFT® combination unit 94353RO
