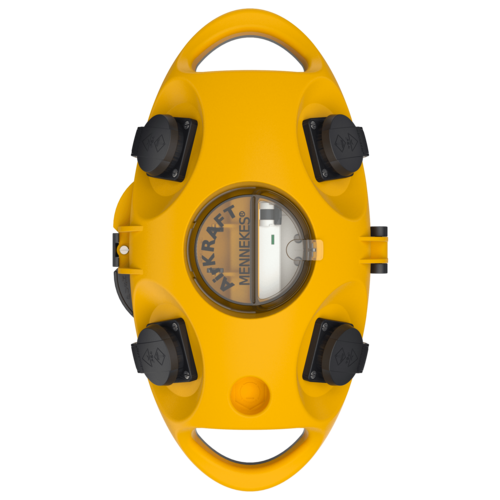

MENNEKES AirKRAFT® combination unit 94566GE
MENNEKES AirKRAFT® combination unit 94566GE images3d

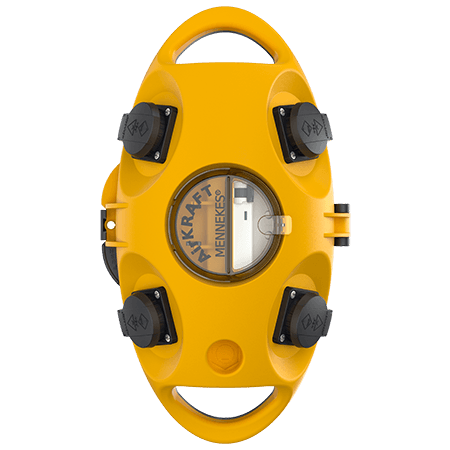

AirKRAFT® combination unit 94566GE

SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • back box in black
  • hinged cover available in red (RO), yellow (GE) or silver (SI)
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.94566GE
  • EAN4015394209614
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AirKRAFT® combination unit 94566GE

SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
Connection/feeder cable
  • for 1 cable up to 5 x 6 mm²
Protection type IP44
Enclosure material Plastic
Weight 2350 g
Storage receptacle combination B

Directives

AirKRAFT® combination unit 94566GE

Appropriate accessories

AirKRAFT® combination unit 94566GE

MENNEKES Pneumatic connection 41442

Pneumatic connection

Part no. 41442

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Pneumatic connection 208620

Pneumatic connection

Part no. 208620

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Set of chains 106060

Set of chains

Part no. 106060

for fixing AirKRAFT® to the ceiling

MENNEKES Pneumatic connection 208621

Pneumatic connection

Part no. 208621

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442
