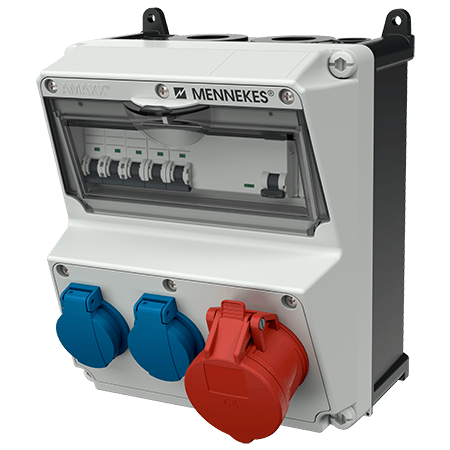

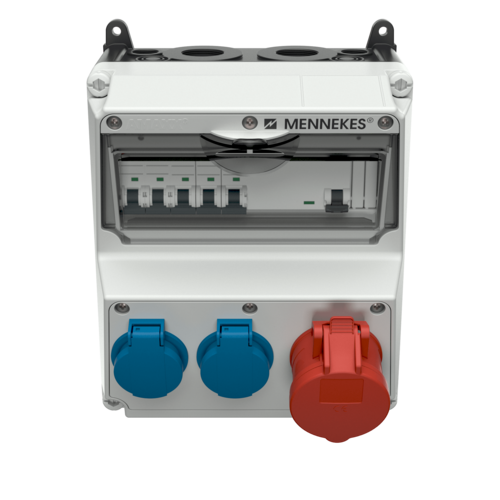

AMAXX® combination unit 920009
With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
AMAXX® combination unit 920009
| CEE 16 A, 5 p, 400 V | 1 |
|---|---|
| SCHUKO® 16 A, 230 V | 2 |
| Fusing |
|
| Pre-fuse max. | 63 A |
| InA | 29 A |
| RDF | 0.9 |
| Connection/feeder cable |
|
| Protection type | IP44 |
| Enclosure material | Plastic |
| Weight | 3440 g |
| Height | 260 mm |
| Width | 225 mm |
| Certifications | EAC |
| Storage receptacle combination | A |
