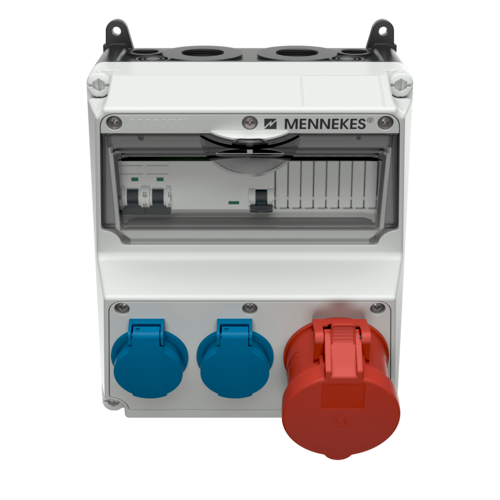

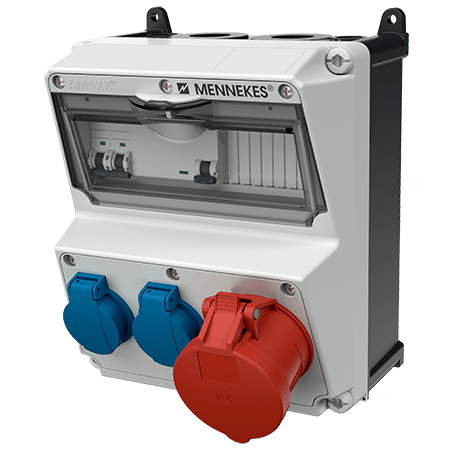

MENNEKES AMAXX® combination unit 920013

AMAXX® combination unit 920013

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows...Read more
CEE 32 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.920013
  • EAN4015394223122
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 920013

CEE 32 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 1 p, C
Pre-fuse max. 32 A
InA 32 A
RDF 1
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 3360 g
Height 260 mm
Width 225 mm
Certifications EAC
Storage receptacle combination B
