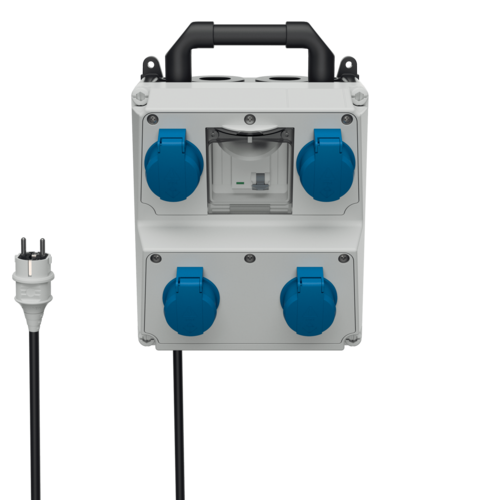

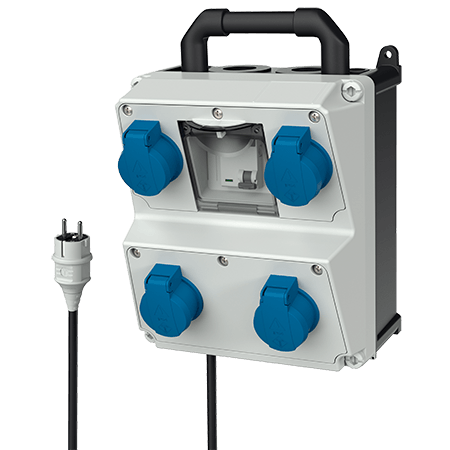

AMAXX® combination unit 920033

SCHUKO® 16 A, 230 V

pre-wired for installation
hinged to the side

enclosure and insert made of AMAPLAST
fusing behind a transparent cover

Part no.920033
EAN4015394222224
Std. Pack. 1

Technical specifications

AMAXX® combination unit 920033

SCHUKO® 16 A, 230 V	4
Fusing	1 RCD 25 A, 2 p, 0.03 A
Pre-fuse max.	16 A
InA	16 A
RDF	1
Connection/feeder cable	2 m H07RN-F3G1.5 with plug SCHUKO® 16 A, 230 V
Protection type	IP44
Enclosure material	Plastic
Weight	2140 g
Height	260 mm
Width	225 mm
Certifications	EAC
Storage receptacle combination	D

Datasheets & Downloads

AMAXX® combination unit 920033

Product infoAMAXX® combination unit 920033 PDF, 161 KB

Mounting instructionsAMAXX® combination unit 920033 PDF, 2 MB

Dimensional drawing portraitAMAXX® combination unit 920033 PNG, 101 KB

Dimensional drawing landscape formatAMAXX® combination unit 920033 PNG, 103 KB

Videos

AMAXX® combination unit 920033

Please accept marketing-cookies to watch this video.

Directives

AMAXX® combination unit 920033

REACh

RoHS

Appropriate accessories

AMAXX® combination unit 920033

CombiTOWER®

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

CombiTOWER®

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

CombiTOWER®

Part no. 15680

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, bright finish

CombiTOWER®

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® combination units with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

Mounting unit

Part no. 18444

Hangable mounting unit, made from light metal, with holes for front and rearinstallation of sockets and combination units, 2 enclosures 260 x 225 mm enclosures 390 x 225 mm, dimensions (H x D x W): 535 x 233 x 348 mm, colour: white aluminium (RAL 9006)

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

Cable gland

Part no. 990608

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

AMAXX® combination unit

Part no. 920060
