MENNEKES AMAXX® combination unit 920060
MENNEKES AMAXX® combination unit 920060 images3d

Please accept marketing-cookies to watch this video.

Video varieties

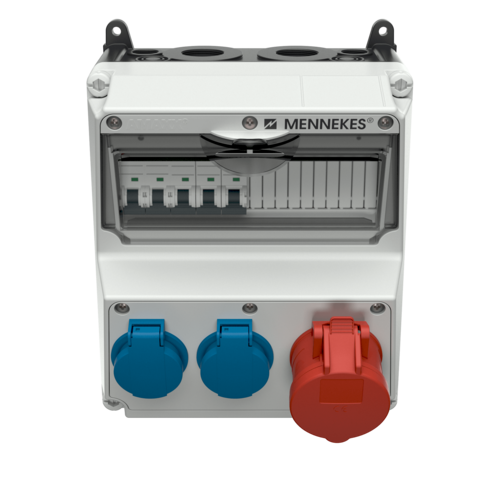

AMAXX® combination unit 920060

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.920060
  • EAN4015394228981
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 920060

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, C
Pre-fuse max. 63 A
InA 32 A
RDF 1
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 2740 g
Height 260 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX® combination unit 920060

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 920060

Appropriate products

AMAXX® combination unit 920060 with IP44

MENNEKES AMAXX® combination unit 920012

AMAXX® combination unit

Part no. 920012

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920010

AMAXX® combination unit

Part no. 920010

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920017

AMAXX® combination unit

Part no. 920017

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 2
MENNEKES AMAXX® combination unit 920015

AMAXX® combination unit

Part no. 920015

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920013

AMAXX® combination unit

Part no. 920013

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920018

AMAXX® combination unit

Part no. 920018

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 2
MENNEKES AMAXX® combination unit 920021

AMAXX® combination unit

Part no. 920021

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • CEE 16 A, 5 p, 400 V: 1
MENNEKES AMAXX® combination unit 920023

AMAXX® combination unit

Part no. 920023

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 2
MENNEKES AMAXX® combination unit 920022

AMAXX® combination unit

Part no. 920022

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • CEE 16 A, 5 p, 400 V: 1
MENNEKES AMAXX® combination unit 920024

AMAXX® combination unit

Part no. 920024

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 2
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920019

AMAXX® combination unit

Part no. 920019

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 2
MENNEKES AMAXX® combination unit 920026

AMAXX® combination unit

Part no. 920026

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 2
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920025

AMAXX® combination unit

Part no. 920025

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • CEE 16 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920027

AMAXX® combination unit

Part no. 920027

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 4
MENNEKES AMAXX® combination unit 920031

AMAXX® combination unit

Part no. 920031

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 3 p, 230 V: 3
MENNEKES AMAXX® combination unit 920028

AMAXX® combination unit

Part no. 920028

  • Enclosure material: Plastic
  • Protection type: IP44
  • SCHUKO® 16 A, 230 V: 6
MENNEKES AMAXX® combination unit 920033

AMAXX® combination unit

Part no. 920033

  • Enclosure material: Plastic
  • Protection type: IP44
  • SCHUKO® 16 A, 230 V: 4
MENNEKES AMAXX® combination unit 920032

AMAXX® combination unit

Part no. 920032

  • Enclosure material: Plastic
  • Protection type: IP44
  • SCHUKO® 16 A, 230 V: 6
MENNEKES AMAXX® combination unit 920034

AMAXX® combination unit

Part no. 920034

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 2
  • SCHUKO® 16 A, 230 V: 3
MENNEKES AMAXX® combination unit 920035

AMAXX® combination unit

Part no. 920035

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920036

AMAXX® combination unit

Part no. 920036

  • Enclosure material: Plastic, high resistance to chemicals / AMELAN
  • Protection type: IP44
  • SCHUKO® 16 A, 230 V: 3
MENNEKES AMAXX® combination unit 920037

AMAXX® combination unit

Part no. 920037

  • Enclosure material: Plastic, high resistance to chemicals / AMELAN
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920038

AMAXX® combination unit

Part no. 920038

  • Enclosure material: Plastic, high resistance to chemicals / AMELAN
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920043

AMAXX® combination unit

Part no. 920043

  • Enclosure material: Plastic
  • Protection type: IP44
  • French/Belgian standard: 3
MENNEKES AMAXX® combination unit 920044

AMAXX® combination unit

Part no. 920044

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 32 A, 4 p, 400 V: 1
  • French/Belgian standard: 2
MENNEKES AMAXX® combination unit 920045

AMAXX® combination unit

Part no. 920045

  • Enclosure material: Plastic
  • Protection type: IP44
MENNEKES AMAXX® combination unit 920046

AMAXX® combination unit

Part no. 920046

  • Enclosure material: Plastic
  • Protection type: IP44
  • French/Belgian standard: 5
MENNEKES AMAXX® combination unit 920056

AMAXX® combination unit

Part no. 920056

  • Enclosure material: Plastic
  • Protection type: IP44
  • SCHUKO® 16 A, 230 V: 3
MENNEKES AMAXX® combination unit 920058

AMAXX® combination unit

Part no. 920058

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920059

AMAXX® combination unit

Part no. 920059

  • Enclosure material: Plastic
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
MENNEKES AMAXX® combination unit 920057

AMAXX® combination unit

Part no. 920057

  • Enclosure material: Plastic
  • Protection type: IP44
  • SCHUKO® 16 A, 230 V: 3
MENNEKES AMAXX® Steckdosenkombination 920060

AMAXX® Steckdosenkombination

Part no. 920060

  • Enclosure material: Kunststoff
  • Protection type: IP44
  • CEE 16 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2

Appropriate accessories

AMAXX® combination unit 920060

MENNEKES Weather shield 15682

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm
