MENNEKES AMAXX® combination unit 932285
MENNEKES AMAXX® combination unit 932285 images3d

Please accept marketing-cookies to watch this video.

Video varieties

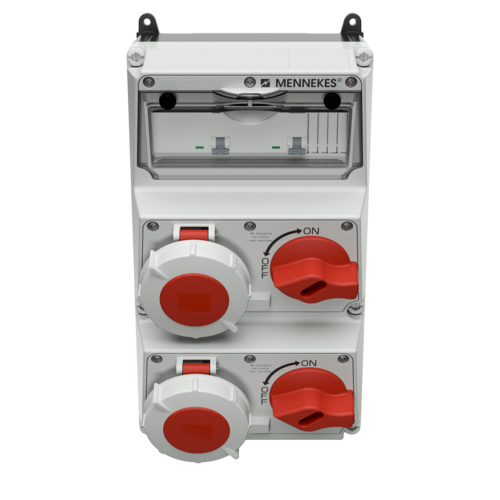

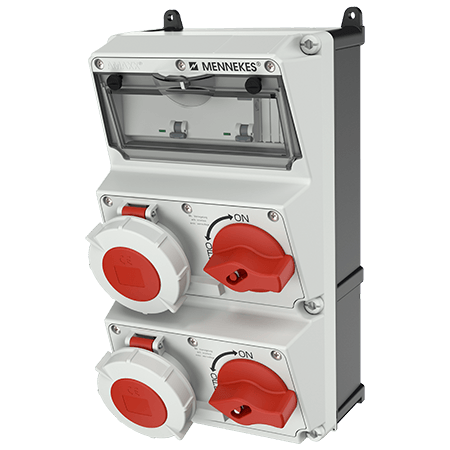

AMAXX® combination unit 932285

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V DUO
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • switched
  • with mechanical DUO-interlock
  • protected by 2 RCD´s 30 mA
  • Part no.932285
  • EAN4015394306504
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 932285

CEE 32 A, 5 p, 400 V DUO 2
Fusing
  • 2 RCD´s 40 A, 4 p, 0.03 A
Connection/feeder cable
  • for 1 cable up to 5 x 16 mm²
Protection type IP67
Enclosure material Plastic
Weight 5042 g
Height 390 mm
Width 225 mm
Storage receptacle combination D
