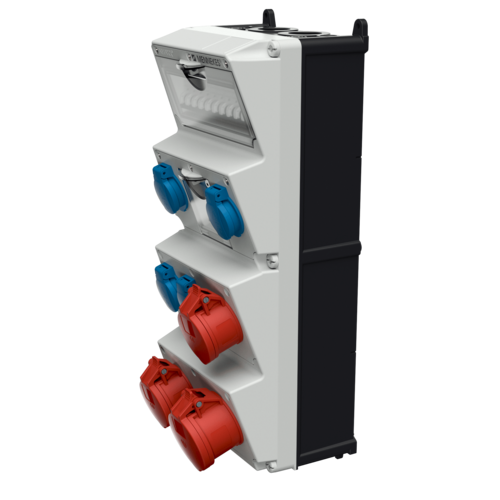

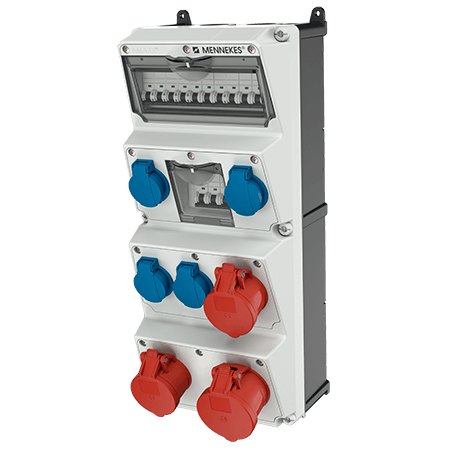

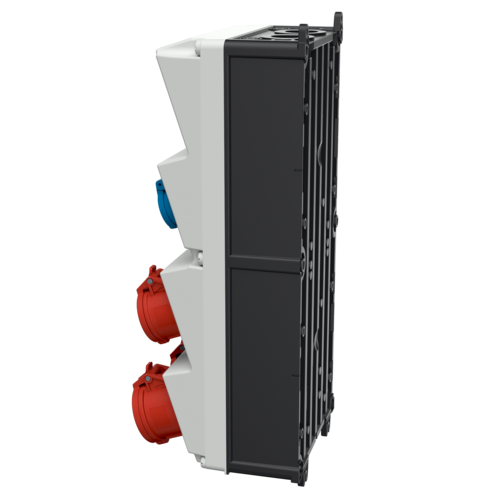

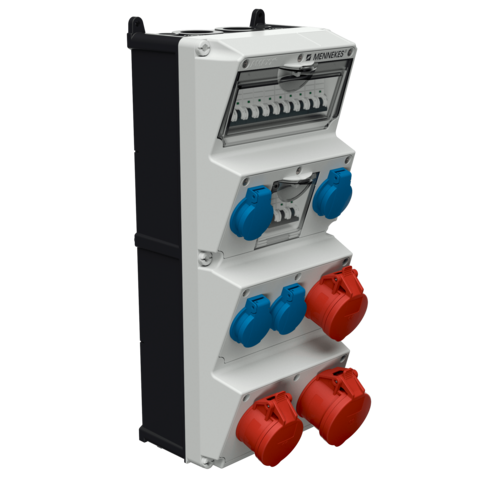

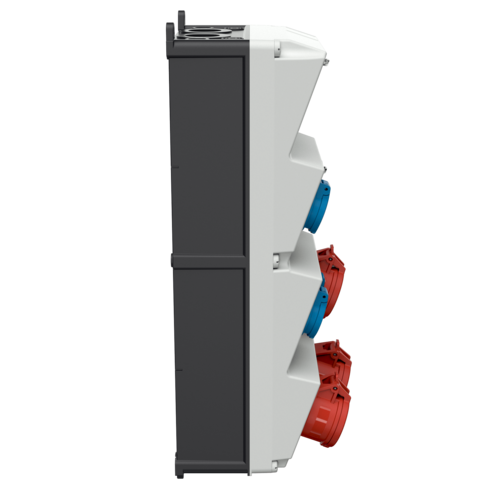

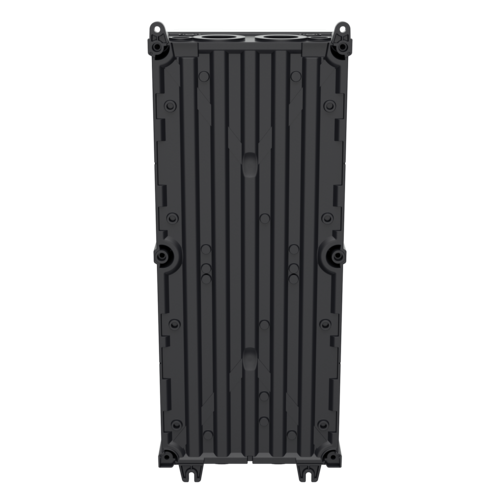

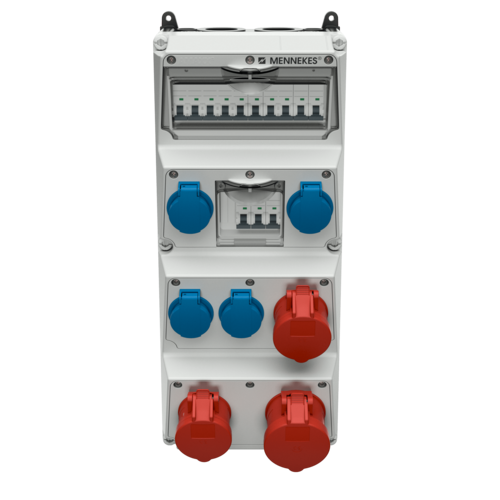

MENNEKES AMAXX® combination unit 940012

AMAXX® combination unit 940012

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows...Read more
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.940012
  • EAN4015394223610
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 940012

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 MCB 32 A, 3 p, C
  • 2 MCB´s 16 A, 3 p, C
  • 4 MCB´s 16 A, 1 p, C
Pre-fuse max. 100 A
InA 72 A
RDF 0.75
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 7700 g
Height 520 mm
Width 225 mm
Certifications EAC
Storage receptacle combination B
