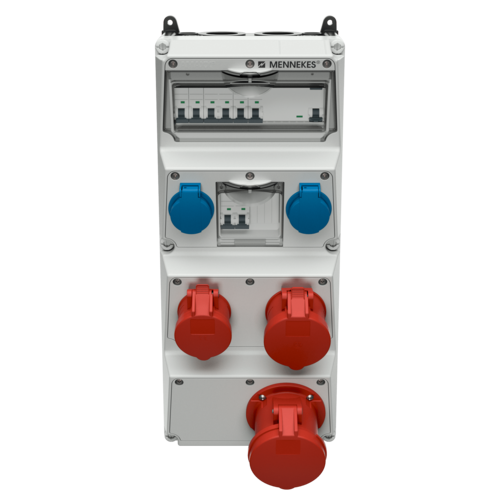

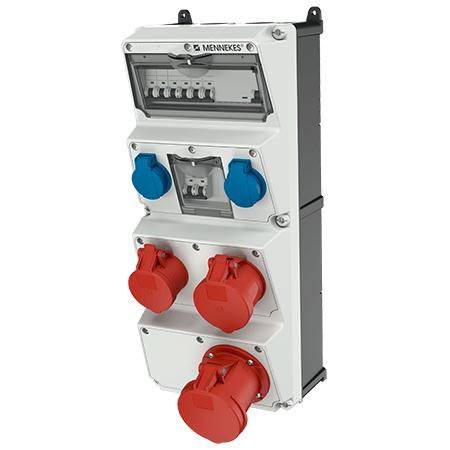

MENNEKES AMAXX® combination unit 940044
MENNEKES AMAXX® combination unit 940044 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 940044

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 63 A, 5 p, 400 V
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.940044
  • EAN4015394229179
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 940044

CEE 63 A, 5 p, 400 V 1
CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, C
Pre-fuse max. 63 A
InA 63 A
RDF 0.6
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 4700 g
Height 520 mm
Width 225 mm
Certifications EAC
Storage receptacle combination D

Videos

AMAXX® combination unit 940044

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 940044

Appropriate accessories

AMAXX® combination unit 940044

MENNEKES Weather shield 15683

Weather shield

Part no. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm
