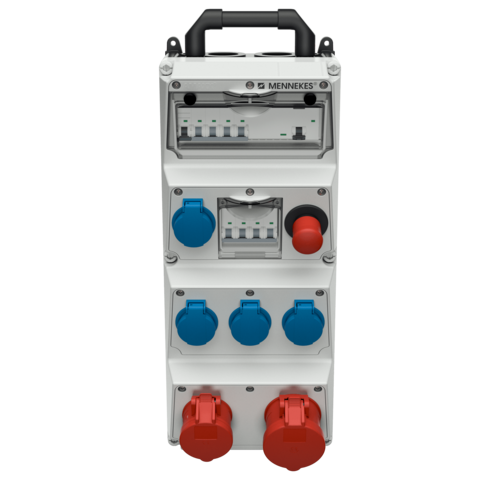

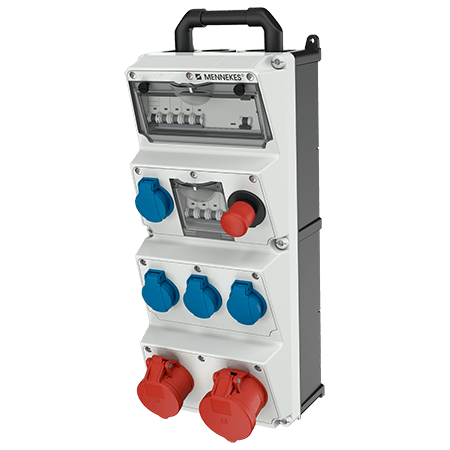

AMAXX® combination unit 943510

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

French/Belgian standard

pre-wired for installation
hinged to the side

enclosure and insert made of AMAPLAST
fusing behind a transparent cover

Part no.943510
EAN4015394286752
Std. Pack. 1

Technical specifications

AMAXX® combination unit 943510

French/Belgian standard	4
Fusing	1 RCD 40 A, 4 p, 0.03 A 1 MCB 32 A, 3 p+N, C 1 MCB 16 A, 3 p+N, C 1 MCB 16 A, 1 p+N, C 1 off button
Pre-fuse max.	40 A
InA	38 A
RDF	0.45
Connection/feeder cable	for 2 cables up to 5 x 25 mm²
Protection type	IP44
Enclosure material	Plastic
Weight	6700 g
Storage receptacle combination	D
