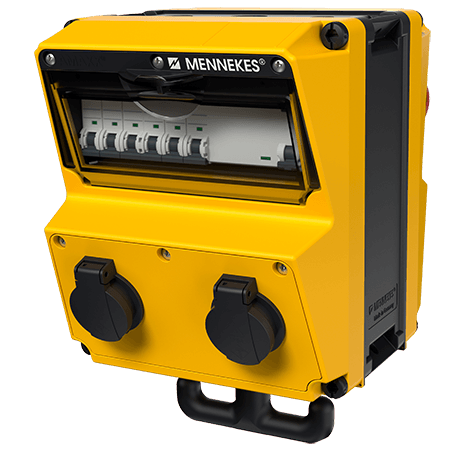

MENNEKES AMAXX® combination unit 970001GE

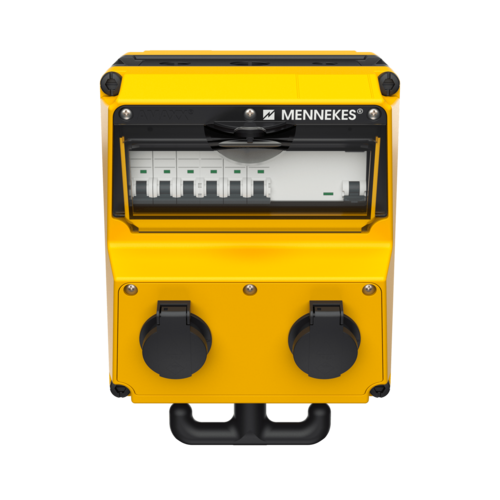

MENNEKES AMAXX® combination unit 970001GE images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 970001GE

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • with suspension eyes on top, grip hooks on the bottom and chain set provided
  • Part no.970001GE
  • EAN4015394271536
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 970001GE

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 4 MCB´s 16 A, 1 p, C
Pre-fuse max. 40 A
InA 40 A
RDF 0.75
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 5000 g
Height 260 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX® combination unit 970001GE

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 970001GE

Appropriate accessories

AMAXX® combination unit 970001GE

MENNEKES Cable gland 990608

Cable gland

Part no. 990608

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES Cable gland 990607

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES Compressed air connection 997000

Compressed air connection

Part no. 997000

for suspendable AMAXX®, for tube NW 9 mm part no. 997001, for tube NW 13 mm part no. 997000

MENNEKES Cable gland 990610

Cable gland

Part no. 990610

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES Compressed air connection 997001

Compressed air connection

Part no. 997001

for suspendable AMAXX®, for tube NW 9 mm part no. 997001, for tube NW 13 mm part no. 997000
