MENNEKES AMAXX® combination unit 970004SI
MENNEKES AMAXX® combination unit 970004SI images3d

Please accept marketing-cookies to watch this video.

Video varieties

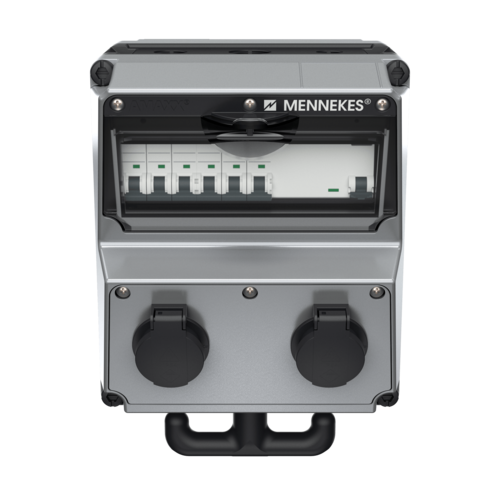

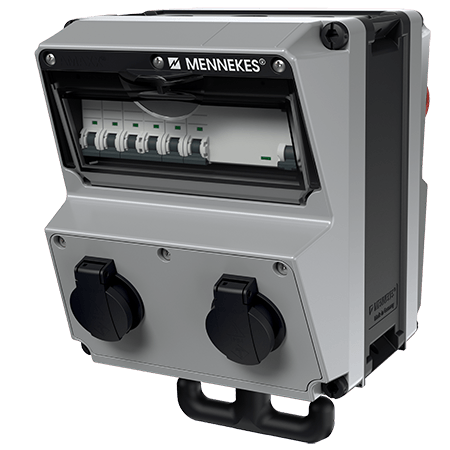

AMAXX® combination unit 970004SI

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • with suspension eyes on top, grip hooks on the bottom and chain set provided
  • Part no.970004SI
  • EAN4015394271635
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 970004SI

CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 3 p, C
  • 4 MCB´s 16 A, 1 p, C
Pre-fuse max. 40 A
InA 40 A
RDF 0.7
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 5000 g
Height 260 mm
Width 225 mm
Storage receptacle combination D
