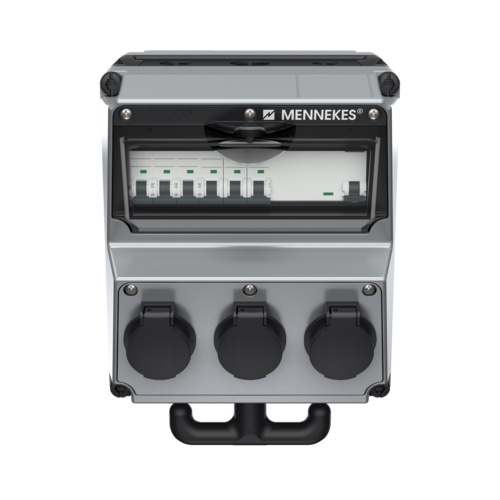

MENNEKES AMAXX® combination unit 970005SI
MENNEKES AMAXX® combination unit 970005SI images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 970005SI

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • with suspension eyes on top, grip hooks on the bottom and chain set provided
  • Part no.970005SI
  • EAN4015394271659
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 970005SI

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 3
Data port sockets 1 Cepex RJ45, 2 fold Cat.6
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p, C
  • 3 MCB´s 16 A, 1 p, C
Pre-fuse max. 32 A
InA 32 A
RDF 1
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 5000 g
Height 260 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX® combination unit 970005SI

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 970005SI

Appropriate accessories

AMAXX® combination unit 970005SI

MENNEKES Compressed air connection 997000

Compressed air connection

Part no. 997000

for suspendable AMAXX®, for tube NW 9 mm part no. 997001, for tube NW 13 mm part no. 997000

MENNEKES Compressed air connection 997001

Compressed air connection

Part no. 997001

for suspendable AMAXX®, for tube NW 9 mm part no. 997001, for tube NW 13 mm part no. 997000
