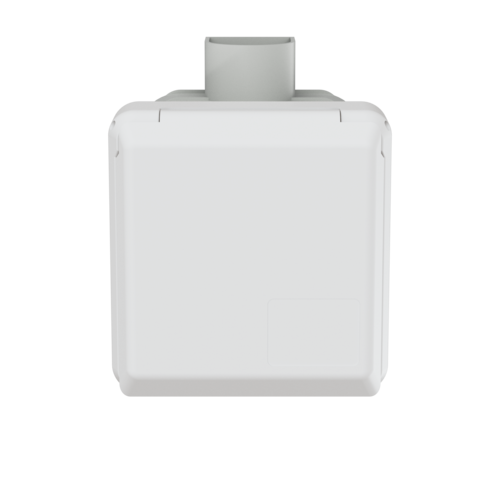

MENNEKES Cepex flush mounted socket 4245
MENNEKES Cepex flush mounted socket 4245 images3d

Cepex flush mounted socket 4245

Poles
Voltage
Clock position
  • screw terminals
  • with flush mounted installation box
  • meeting DIN 18032 standards for ball rebound
  • Part no.4245
  • EAN4015394022930
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex flush mounted socket 4245

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 345 g
Certifications VDE

Directives

Cepex flush mounted socket 4245

Appropriate accessories

Cepex flush mounted socket 4245

MENNEKES Cepex masking frame 41408

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

MENNEKES Cepex masking frames 41406

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

MENNEKES Protection plate 41414

Protection plate

Part no. 41414

for flush mounted installation box to protect fixing holes and the box from plaster and dirt until the socket is installed

MENNEKES Cepex masking frames 41423

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

MENNEKES Cepex masking frame 41424

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets
