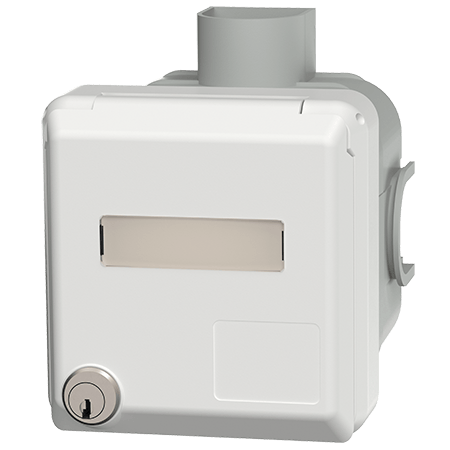

Cepex flush mounted socket 4246

Name: Cepex flush mounted socket
Brand: MENNEKES
SKU: 4246

Ampere 16 A

Poles

Voltage

Clock position

screw terminals
with labelling field
with safety lock
two keys

cannot be dismantled when locked
on request with identical locks
with flush mounted installation box
with identical lock: part no + index G

Part no.4246
EAN4015394022947
Std. Pack. 5

Technical specifications

Cepex flush mounted socket 4246

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	307 g
Certifications	EAC

Datasheets & Downloads

Cepex flush mounted socket 4246

Product infoCepex flush mounted socket 4246 PDF, 178 KB

CAD data STPCepex flush mounted socket 4246 ZIP, 230 KB

CAD data 3D DWGCepex flush mounted socket 4246 ZIP, 539 KB

Dimensional drawing portraitCepex flush mounted socket 4246 PNG, 91 KB

Dimensional drawing landscape formatCepex flush mounted socket 4246 PNG, 92 KB

Directives

Cepex flush mounted socket 4246

REACh

RoHS

Appropriate accessories

Cepex flush mounted socket 4246

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

Protection plate

Part no. 41414

for flush mounted installation box to protect fixing holes and the box from plaster and dirt until the socket is installed

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets
