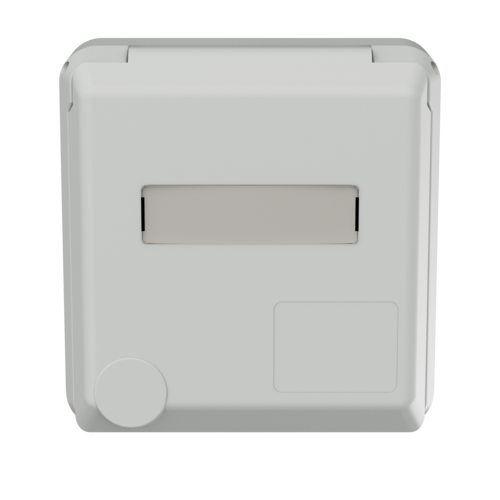

MENNEKES Cepex panel mounted socket 4217
MENNEKES Cepex panel mounted socket 4217 images3d

Cepex panel mounted socket 4217

Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • suitable for installation in cable ducts and columns
  • Part no.4217
  • EAN4015394022688
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted socket 4217

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 258 g
Certifications EAC

Directives

Cepex panel mounted socket 4217

Appropriate accessories

Cepex panel mounted socket 4217

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted sockets (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE sockets 16 A and 32 A and Cepex sockets SCHUKO®, can be combined with all Cepex panel mounted sockets

MENNEKES Cepex masking frames 41407

Cepex masking frames

Part no. 41407

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets
