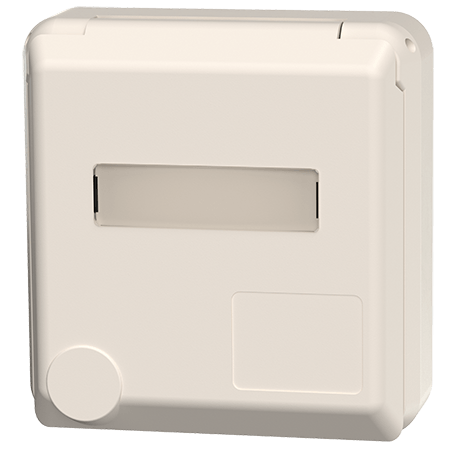

Cepex panel mounted socket SCHUKO® 4974

Name: Cepex panel mounted socket SCHUKO®
Brand: MENNEKES
SKU: 4974

Ampere 16 A

Poles

Voltage

silver, alpine white or pearl white
screw terminals

with labelling field
suitable for installation in cable ducts and columns

Part no.4974
EAN4015394023074
Std. Pack. 5

Technical specifications

Cepex panel mounted socket SCHUKO® 4974

Ampere	16 A
Poles	2 p+E
Voltage	230 V
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	139 g
Certifications	EAC

Datasheets & Downloads

Cepex panel mounted socket SCHUKO® 4974

Product infoCepex panel mounted socket SCHUKO® 4974 PDF, 168 KB

CAD data STPCepex panel mounted socket SCHUKO® 4974 ZIP, 732 KB

CAD data 3D DWGCepex panel mounted socket SCHUKO® 4974 ZIP, 1 MB

Dimensional drawing portraitCepex panel mounted socket SCHUKO® 4974 PNG, 60 KB

Dimensional drawing landscape formatCepex panel mounted socket SCHUKO® 4974 PNG, 60 KB

Directives

Cepex panel mounted socket SCHUKO® 4974

REACh

RoHS

Appropriate accessories

Cepex panel mounted socket SCHUKO® 4974

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted sockets (Data, SCHUKO®, 16 A and 32 A)

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

Flush mounted installation box

Part no. 41404

for Cepex CEE sockets 16 A and 32 A and Cepex sockets SCHUKO®, can be combined with all Cepex panel mounted sockets

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets
