MENNEKES Cepex wall mounted socket SCHUKO® 4973
MENNEKES Cepex wall mounted socket SCHUKO® 4973 images3d

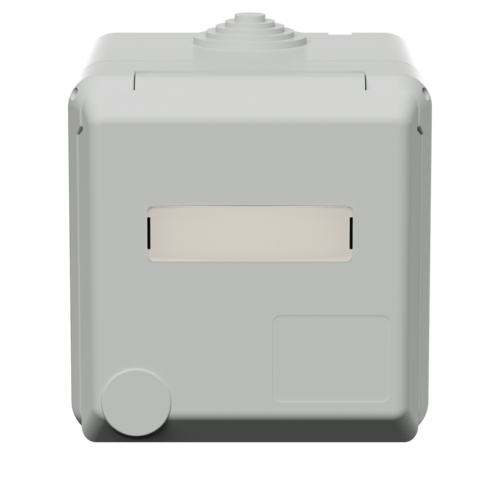

Cepex wall mounted socket SCHUKO® 4973

Ampere 16 A
Poles
Voltage
  • grey
  • screw terminals
  • with labelling field
  • cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø
  • Part no.4973
  • EAN4015394023050
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted socket SCHUKO® 4973

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 246 g
Certifications EAC

Directives

Cepex wall mounted socket SCHUKO® 4973

Appropriate accessories

Cepex wall mounted socket SCHUKO® 4973

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted sockets (Data, SCHUKO®, 16 A and 32 A)
