Show all 7 pole
/
Show all Connector AM-TOP®

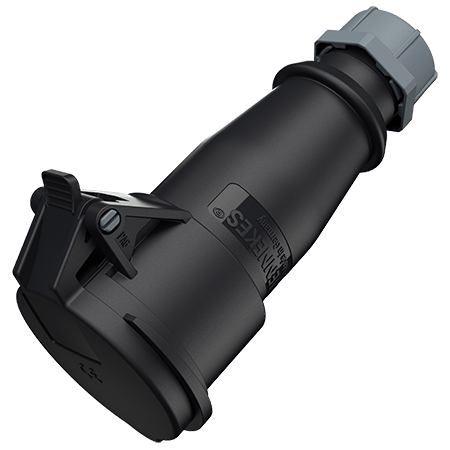

Connector AM-TOP® 1065
Ampere
16 A
32 A
Poles
7 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
with highly heat resistant contact carrier
nickel plated contacts
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
1065
EAN
4015394007159
Std. Pack.
10
Add to shopping basket
Technical specifications
Connector AM-TOP® 1065
Ampere
16 A
Poles
7 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
highly heat resistant contact carrier
nickel plated contacts
Protection type
IP44
Weight
241 g
Certifications
EAC
Datasheets & Downloads
Connector AM-TOP® 1065
Product info
Connector AM-TOP® 1065
PDF, 148 KB
Mounting instructions
Connector AM-TOP® 1065
PDF, 2 MB
Dimensional drawing portrait
Connector AM-TOP® 1065
PNG, 67 KB
Dimensional drawing landscape format
Connector AM-TOP® 1065
PNG, 67 KB
Directives
Connector AM-TOP® 1065
REACh
RoHS
