Show all 7 pole
/
Show all Connector AM-TOP®

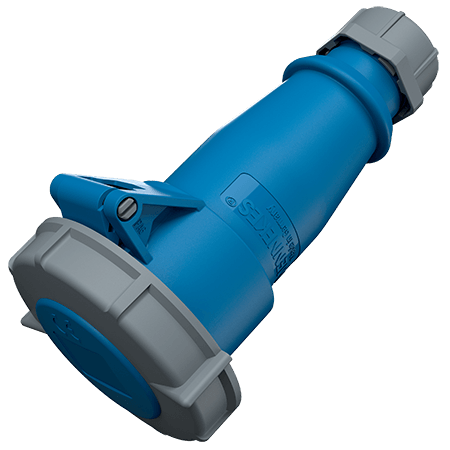

Connector AM-TOP® 3783
Ampere
16 A
32 A
Poles
7 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
with highly heat resistant contact carrier
nickel plated contacts
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
3783
EAN
4015394099147
Std. Pack.
10
Add to shopping basket
Technical specifications
Connector AM-TOP® 3783
Ampere
16 A
Poles
7 p
Voltage
230 V
Clock position
9 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
nickel plated contacts
highly heat resistant contact carrier
Protection type
IP67
Weight
270 g
Certifications
EAC
Datasheets & Downloads
Connector AM-TOP® 3783
Product info
Connector AM-TOP® 3783
PDF, 133 KB
Mounting instructions
Connector AM-TOP® 3783
PDF, 2 MB
Dimensional drawing portrait
Connector AM-TOP® 3783
PNG, 71 KB
Dimensional drawing landscape format
Connector AM-TOP® 3783
PNG, 71 KB
Directives
Connector AM-TOP® 3783
REACh
RoHS
