Show all 7 pole
/
Show all Connector AM-TOP®
Connector AM-TOP® 746
Ampere
16 A
32 A
Poles
7 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
with highly heat resistant contact carrier
nickel plated contacts
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
746
EAN
4015394005735
Std. Pack.
10
Add to shopping basket
Technical specifications

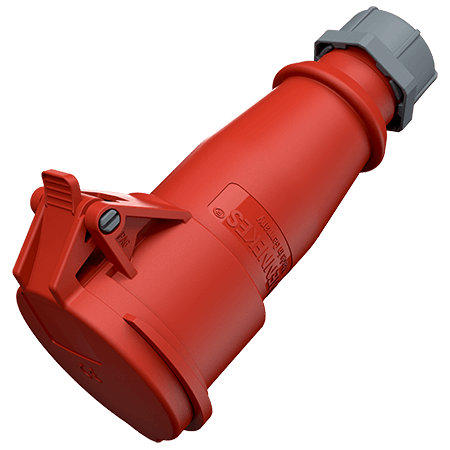

Connector AM-TOP® 746
Ampere
16 A
Poles
7 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
highly heat resistant contact carrier
nickel plated contacts
Protection type
IP44
Weight
241 g
Certifications
EAC
Datasheets & Downloads
Connector AM-TOP® 746
Product info
Connector AM-TOP® 746
PDF, 129 KB
Manufacturer‘s declaration
Connector AM-TOP® 746
PDF, 53 KB
Mounting instructions
Connector AM-TOP® 746
PDF, 2 MB
Dimensional drawing portrait
Connector AM-TOP® 746
PNG, 67 KB
Dimensional drawing landscape format
Connector AM-TOP® 746
PNG, 67 KB
Directives
Connector AM-TOP® 746
REACh
RoHS
