MENNEKES

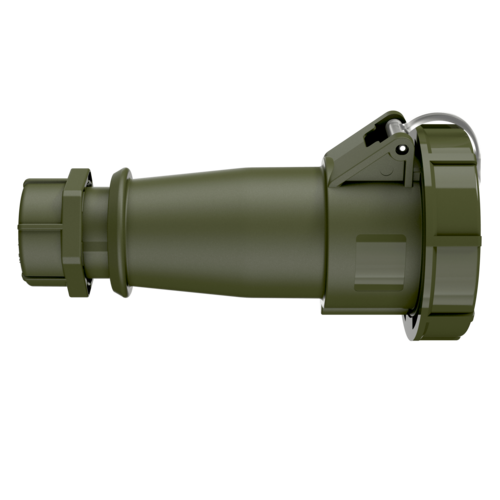

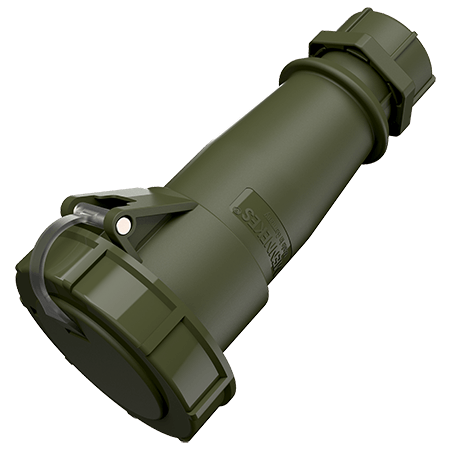

MENNEKES Connector AM-TOP® TM 24785
MENNEKES Connector AM-TOP® TM 24785 images3d

Connector AM-TOP® TM 24785

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form DS)
  • Part no.24785
  • EAN4015394260837
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP® TM 24785

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 452 g
Certifications EAC

Directives

Connector AM-TOP® TM 24785
