MENNEKES Connector PowerTOP Xtra S with SafeCONTACT 14521
MENNEKES Connector PowerTOP Xtra S with SafeCONTACT 14521 images3d

Please accept marketing-cookies to watch this video.

Video varieties

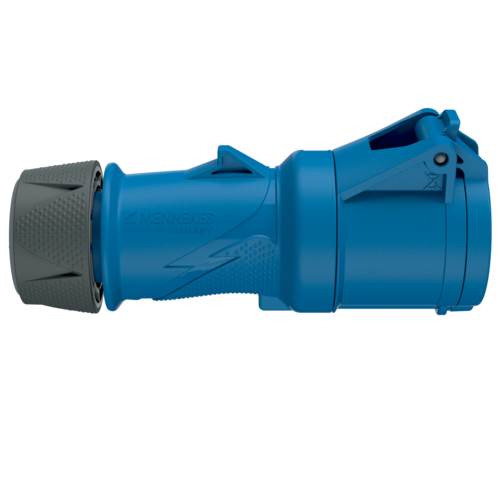

Connector PowerTOP Xtra S with SafeCONTACT 14521

All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP® Xtra connector has IP54 protection class and is therefore impervious to both water spray and dust.

Poles
Voltage
Clock position
  • screwless, with insulation displacement technology SafeCONTACT
  • X-CONTACT®
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP® Xtra S connector replaces the StarTOP connector 980
  • Part no.14521
  • EAN4015394293941
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
SafeCONTACT

SafeCONTACT

Screwless, with insulation displacement technology

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra S with SafeCONTACT 14521

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact X-CONTACT
Protection type IP54
Weight 188 g
Certifications VDE
CQC

Videos

Connector PowerTOP Xtra S with SafeCONTACT 14521

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra S with SafeCONTACT 14521

Appropriate products

Connector PowerTOP Xtra S with SafeCONTACT 14521 with IP54

MENNEKES Plug PowerTOP Xtra S with SafeCONTACT 13521

Plug PowerTOP Xtra S with SafeCONTACT

Part no. 13521

  • Protection type: IP54
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screwless - SafeCONTACT
