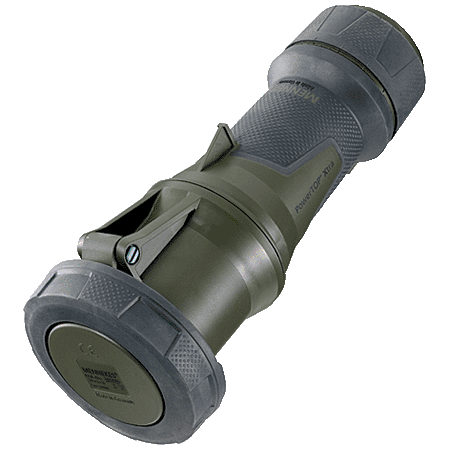

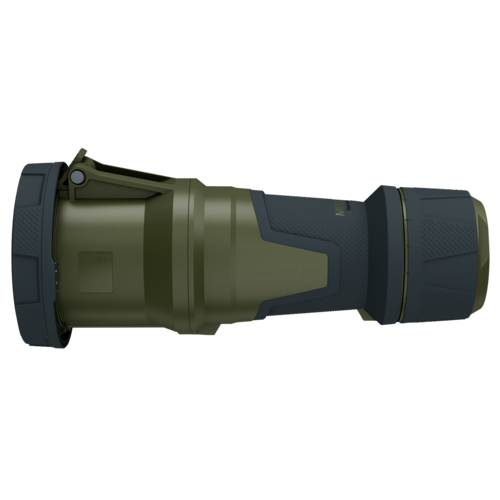

Connector PowerTOP Xtra TM 24988
Voltage
Clock position
- screw terminals
- frame terminals
- X-CONTACT®
- rubberised grip area
- highly heat resistant contact carrier
- nickel plated contacts
- cable gland and external cable grip
- strain relief and protection against kinking
- enclosure with thread lock
- two safety slides
- (form DS)
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Connector PowerTOP Xtra TM 24988
| Ampere | 125 A |
|---|---|
| Poles | 5 p |
| Voltage | 50-500 V |
| Clock position | 2 h |
| Hertz | 300-500 Hz |
| Connection technology | Screw terminals |
| Contact |
X-CONTACT highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP67 |
| Weight | 1400 g |
| Certifications | VDE |
Videos
Connector PowerTOP Xtra TM 24988
