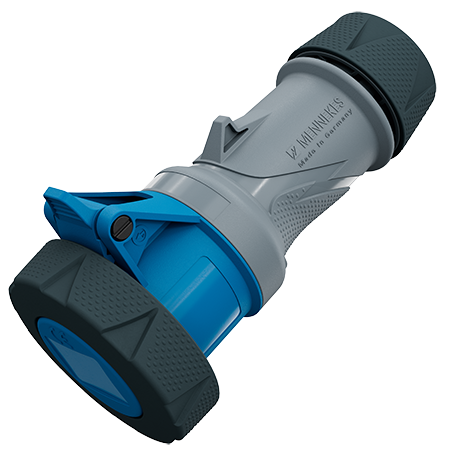

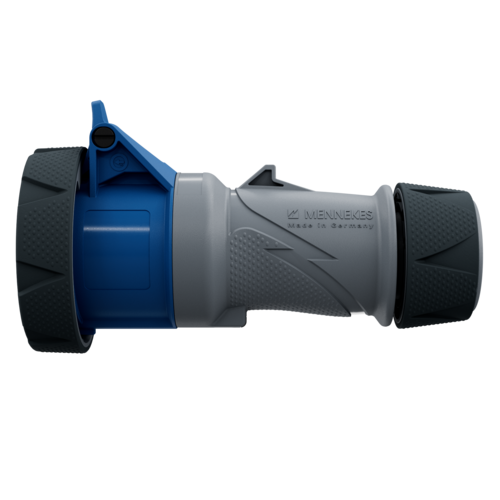

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14620
MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14620 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP Xtra with ErgoCONTACT 14620

Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14620
  • EAN4015394302438
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra with ErgoCONTACT 14620

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact X-CONTACT
Protection type IP67 / IP69
Weight 240 g
