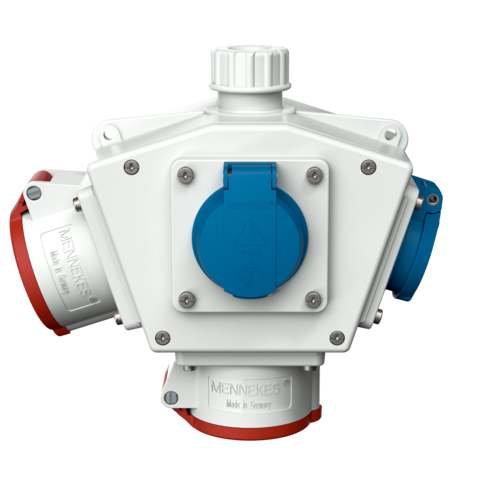

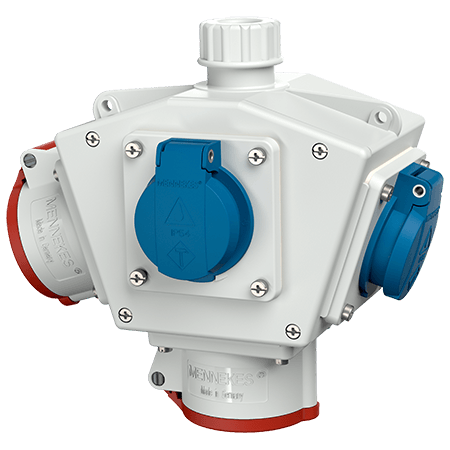

MENNEKES DELTA-BOX combination unit 92655
MENNEKES DELTA-BOX combination unit 92655 images3d

DELTA-BOX combination unit 92655

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • with cable grip and installed hanging hook
  • Part no.92655
  • EAN4015394087984
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

DELTA-BOX combination unit 92655

CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 2
Connection/feeder cable
  • for 1 cable up to 5 x 6 mm²
Protection type IP44
Enclosure material Plastic
Weight 1010 g
Certifications EAC
Storage receptacle combination B

Directives

DELTA-BOX combination unit 92655

Appropriate accessories

DELTA-BOX combination unit 92655

MENNEKES Pneumatic connection 41440

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Pneumatic connection 41441

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile combination units
