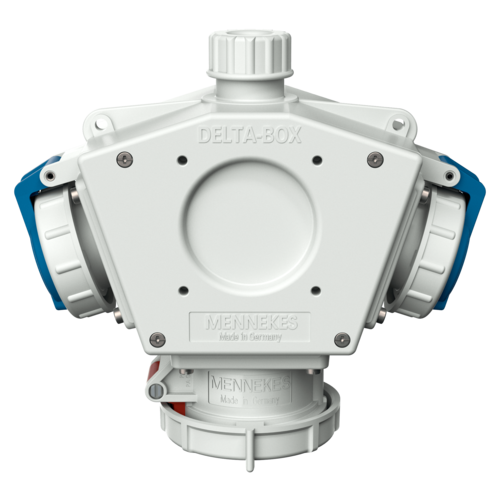

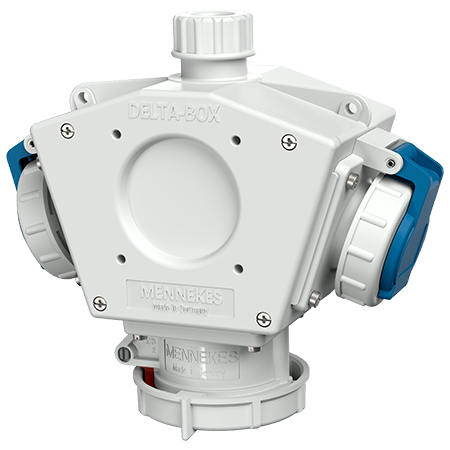

MENNEKES DELTA-BOX combination unit 92910
MENNEKES DELTA-BOX combination unit 92910 images3d

DELTA-BOX combination unit 92910

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • with internal strain relief and installed hanging hook
  • Part no.92910
  • EAN4015394088547
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

DELTA-BOX combination unit 92910

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Connection/feeder cable
  • for 1 cable up to 5 x 6 mm²
Protection type IP67
Enclosure material Plastic
Weight 908 g
Certifications EAC
Storage receptacle combination A

Directives

DELTA-BOX combination unit 92910

Appropriate accessories

DELTA-BOX combination unit 92910

MENNEKES Pneumatic connection 41441

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile combination units

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Pneumatic connection 41440

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441
