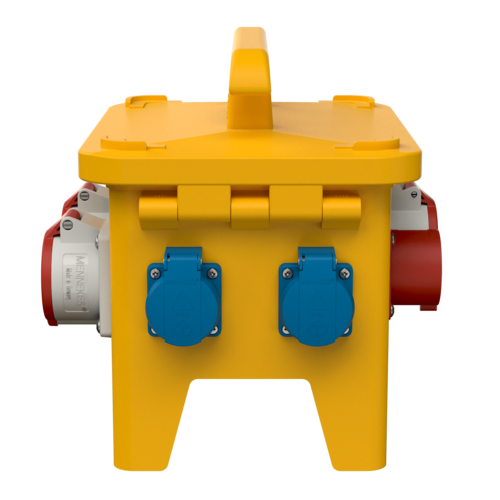

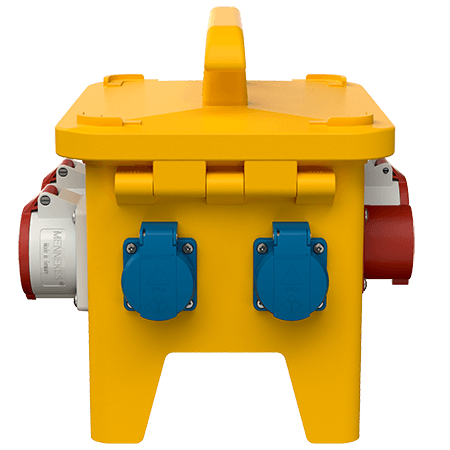

MENNEKES EverGUM combination unit 70349
MENNEKES EverGUM combination unit 70349 images3d

EverGUM combination unit 70349

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70349
  • EAN4015394134893
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM combination unit 70349

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 32 A
InA 32 A
RDF 0.9
Connection/feeder cable
  • 1 inlet 32 A, 5 p, 400 V
Protection type IP44
Enclosure material Solid rubber
Weight 6660 g
Length 306 mm
Height 288 mm
Width 230 mm
Certifications EAC
Storage receptacle combination A

Directives

EverGUM combination unit 70349
