MENNEKES EverGUM combination unit 70426
MENNEKES EverGUM combination unit 70426 images3d

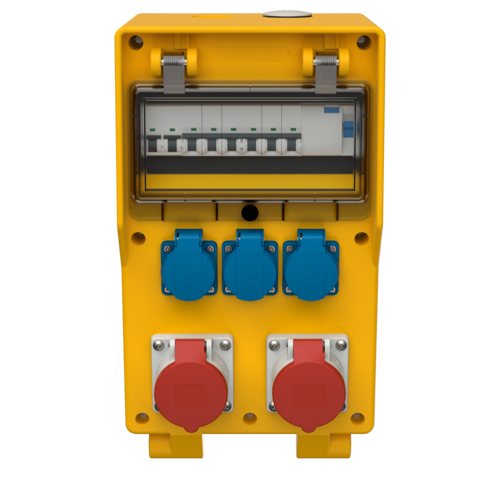

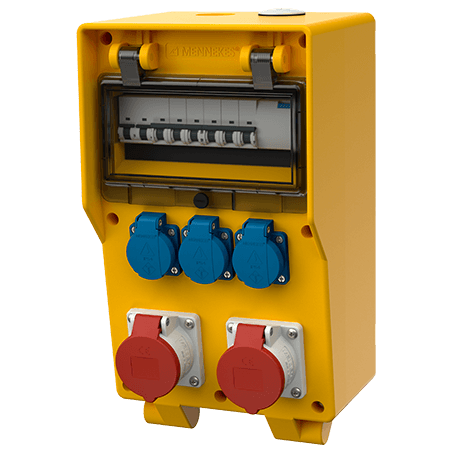

EverGUM combination unit 70426

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70426
  • EAN4015394168003
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM combination unit 70426

CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 3
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 40 A
InA 37 A
RDF 0.65
Connection/feeder cable
  • for 1 cable up to 5 x 16 mm²
Protection type IP44
Enclosure material Solid rubber
Weight 8454 g
Height 380 mm
Width 230 mm
Certifications EAC
Storage receptacle combination C

Directives

EverGUM combination unit 70426

Appropriate accessories

EverGUM combination unit 70426

MENNEKES Fastening straps for all rubber combinations 41445

Fastening straps for all rubber combinations

Part no. 41445

for external fastening of EverGUM combinations, set: 4 pieces with screws packed in a plastic bag
