MENNEKES

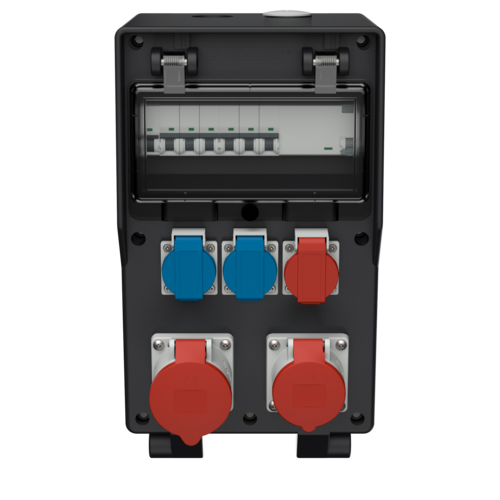

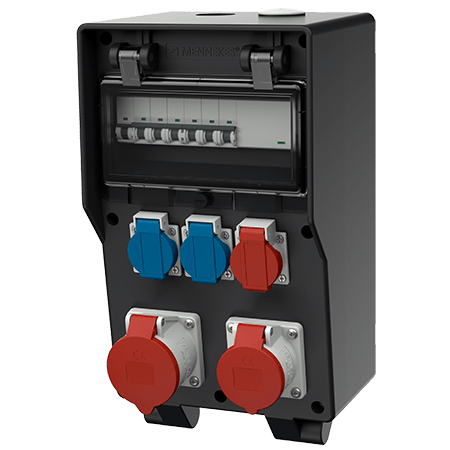

MENNEKES EverGUM combination unit 7202170
MENNEKES EverGUM combination unit 7202170 images3d

EverGUM combination unit 7202170

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
Swiss standard - Type 23
Swiss standard - Type 25
  • solid rubber enclosure, black
  • pre-wired for installation
  • Part no.7202170
  • EAN4015394227168
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM combination unit 7202170

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
Swiss standard - Type 23 2
Swiss standard - Type 25 1
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 1 MCB 16 A, 1 p, C
Pre-fuse max. 63 A
InA 43 A
RDF 0.45
Connection/feeder cable
  • for 1 cable up to 5 x 16 mm²
Protection type IP44
Enclosure material Solid rubber
Weight 9380 g
Height 380 mm
Width 230 mm
Storage receptacle combination D

Directives

EverGUM combination unit 7202170
