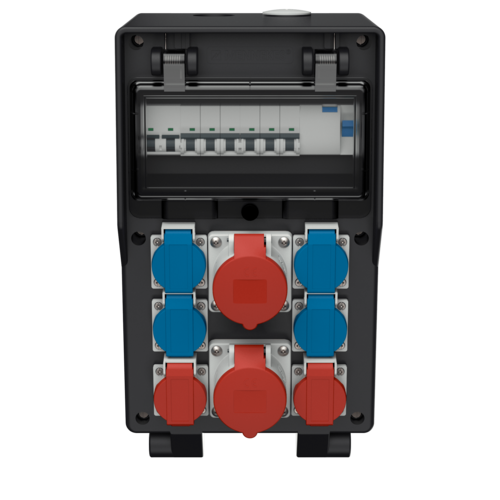

MENNEKES EverGUM combination unit 7304214SW
MENNEKES EverGUM combination unit 7304214SW images3d

EverGUM combination unit 7304214SW

CEE 16 A, 5 p, 400 V
Swiss standard - Type 23
Swiss standard - Type 25
  • solid rubber enclosure, black
  • pre-wired for installation
  • Part no.7304214SW
  • EAN4015394263524
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM combination unit 7304214SW

CEE 16 A, 5 p, 400 V 2
Swiss standard - Type 23 4
Swiss standard - Type 25 2
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, C
Pre-fuse max. 40 A
InA 40 A
RDF 0.95
Connection/feeder cable
  • for 1 cable up to 5 x 16 mm²
Protection type IP44
Enclosure material Solid rubber
Weight 9180 g
Height 380 mm
Width 230 mm
Storage receptacle combination D

Directives

EverGUM combination unit 7304214SW
