MENNEKES EverGUM combination unit 7513001
MENNEKES EverGUM combination unit 7513001 images3d

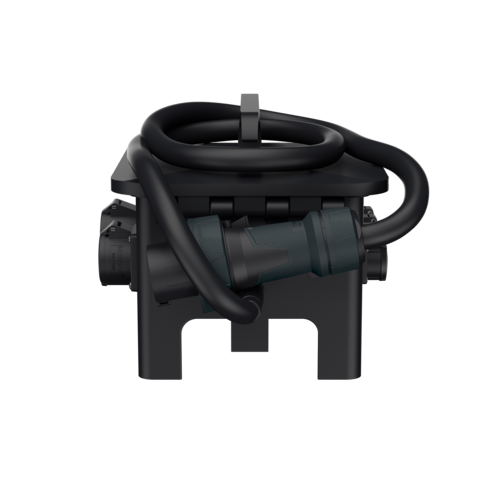

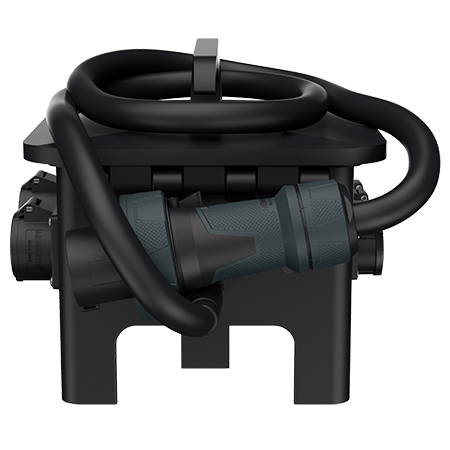

EverGUM combination unit 7513001

CEE 63 A, 5 p, 400 V
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • distributor compact
  • portable, stackable
  • with hinged cover
  • with two stainless steel quick release
  • Part no.7513001
  • EAN4015394262022
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM combination unit 7513001

CEE 63 A, 5 p, 400 V 1
CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, C
Connection/feeder cable
  • 2 m H07RN-F5G10 with CEE-plug 63 A, 5 p, 400 V
Protection type IP44
Maximum current load 32 A permissible total current
Enclosure material Solid rubber
Weight 14445 g
Length 360 mm
Height 330 mm
Width 340 mm
Certifications EAC
Storage receptacle combination D

Directives

EverGUM combination unit 7513001
