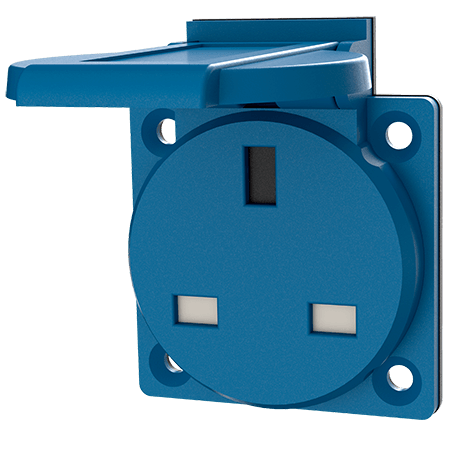

MENNEKES Grounding-type panel mounted socket 10718
MENNEKES Grounding-type panel mounted socket 10718 images3d

Grounding-type panel mounted socket 10718

Ampere 13 A
Poles
Voltage
  • British standard
  • with hinged lid
  • 3 screw terminals
  • socket cannot be combined with enclosure base part no. 10714, 10715 or 10716
  • Part no.10718
  • EAN4015394216315
  • Std. Pack. 100

Technical specifications

Grounding-type panel mounted socket 10718

Ampere 13 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP44
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 80 g
Certifications EAC

Datasheets & Downloads

Grounding-type panel mounted socket 10718

Product infoGrounding-type panel mounted socket 10718 PDF, 161 KB
CAD data STPGrounding-type panel mounted socket 10718 ZIP, 180 KB
CAD data 3D DWGGrounding-type panel mounted socket 10718 ZIP, 479 KB
Dimensional drawing portraitGrounding-type panel mounted socket 10718 PNG, 57 KB
Dimensional drawing landscape formatGrounding-type panel mounted socket 10718 PNG, 58 KB

Directives

Grounding-type panel mounted socket 10718

REACh
RoHS
