MENNEKES Grounding-type panel mounted socket 11611
MENNEKES Grounding-type panel mounted socket 11611 images3d

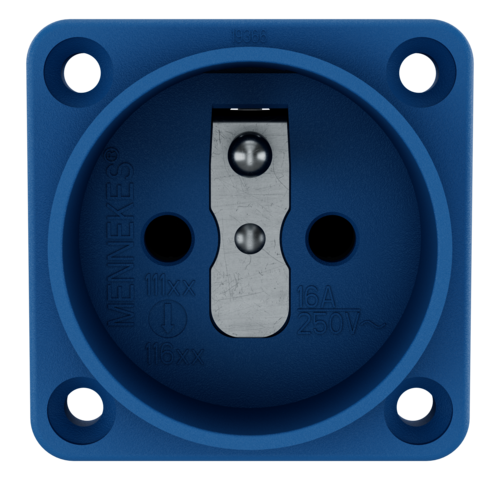

Grounding-type panel mounted socket 11611

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • without hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11611
  • EAN4015394193142
  • Std. Pack. 20
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted socket 11611

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP20
Shutter No

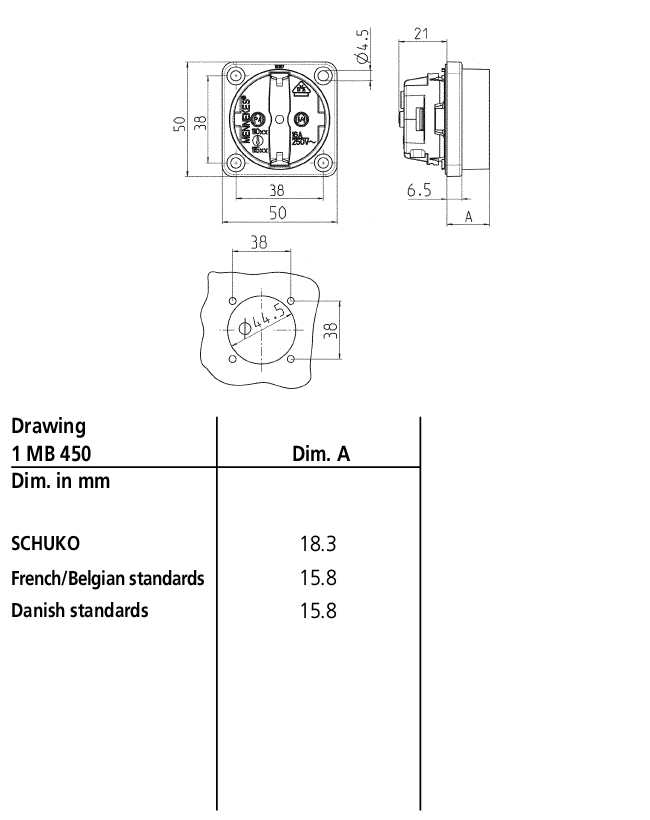

Flange 50x50 mm
Fixing hole 38x38 mm
Weight 30 g
Certifications EAC

Directives

Grounding-type panel mounted socket 11611

Appropriate accessories

Grounding-type panel mounted socket 11611

MENNEKES Base for wall mounted socket 10715

Base for wall mounted socket

Part no. 10715

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm
