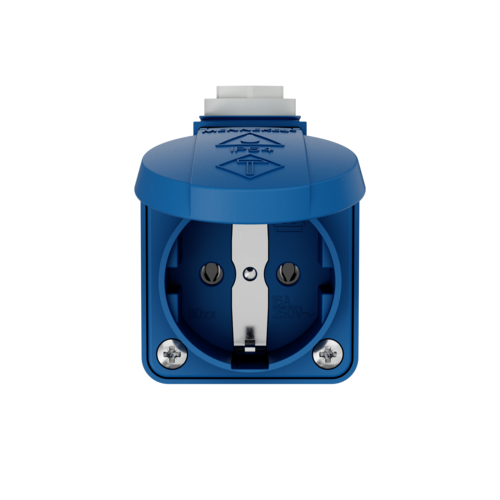

MENNEKES Grounding-type wall mounted socket 10092
MENNEKES Grounding-type wall mounted socket 10092 images3d

Grounding-type wall mounted socket 10092

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • with hinged lid
  • 3 plug-in terminals as connecting terminals for 1,5 - 2,5 mm²
  • cable entry: M 20 x 1,5 at top with cable gland and M 20 x 1,5 blind (to be cut out) at the bottom
  • can be arranged in a row using slot and slide
  • Part no.10092
  • EAN4015394206187
  • Std. Pack. 50
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type wall mounted socket 10092

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP44
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 85 g
Certifications EAC

Directives

Grounding-type wall mounted socket 10092
