MENNEKES Panel mounted inlet 1080
MENNEKES Panel mounted inlet 1080 images3d

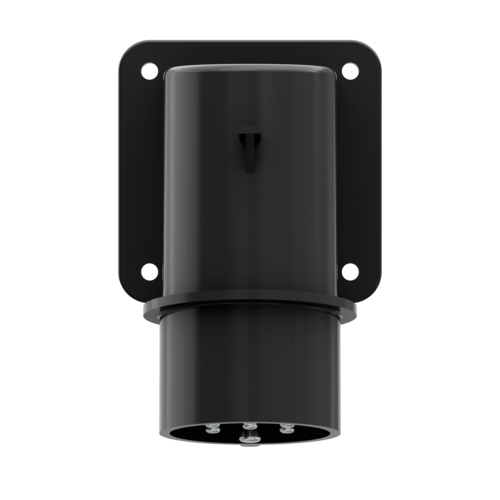

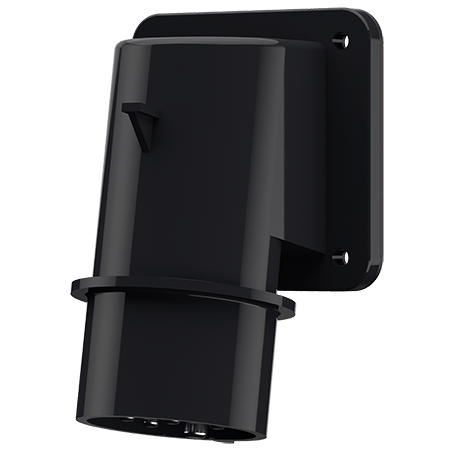

Panel mounted inlet 1080

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • Part no.1080
  • EAN4015394007234
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 1080

Ampere 32 A
Poles 7 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 282 g
Certifications CQC

Directives

Panel mounted inlet 1080
