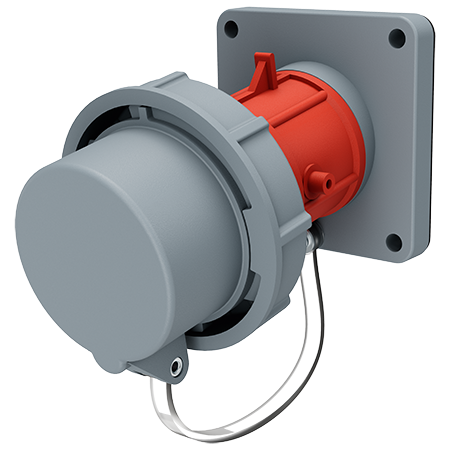

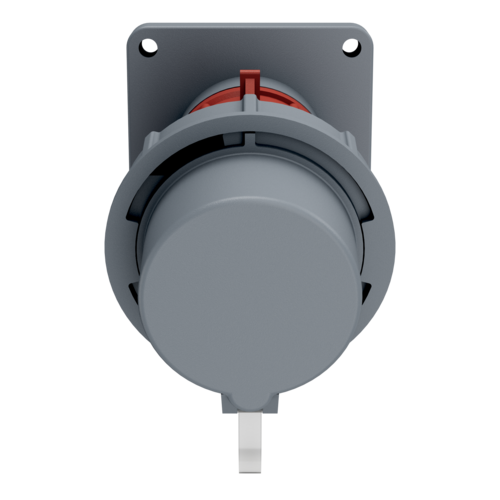

MENNEKES Panel mounted inlet 1253
MENNEKES Panel mounted inlet 1253 images3d

Panel mounted inlet 1253

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • with protective cover
  • Part no.1253
  • EAN4015394008866
  • Std. Pack. 10

Technical specifications

Panel mounted inlet 1253

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 302 g
Certifications VDE
EAC

Datasheets & Downloads

Panel mounted inlet 1253

Product infoPanel mounted inlet 1253 PDF, 288 KB
CAD data STPPanel mounted inlet 1253 ZIP, 237 KB
CAD data 3D DWGPanel mounted inlet 1253 ZIP, 934 KB
Dimensional drawing portraitPanel mounted inlet 1253 PNG, 46 KB
Dimensional drawing landscape formatPanel mounted inlet 1253 PNG, 119 KB

Directives

Panel mounted inlet 1253

REACh
RoHS

Appropriate accessories

Panel mounted inlet 1253

MENNEKES Protective cover 40785

Protective cover

Part no. 40785

for watertight plugs, wall mounted and panel mounted inlets 16 A, 5 p + 7 p
