Show all Inlets
/
Show all Panel mounted inlet

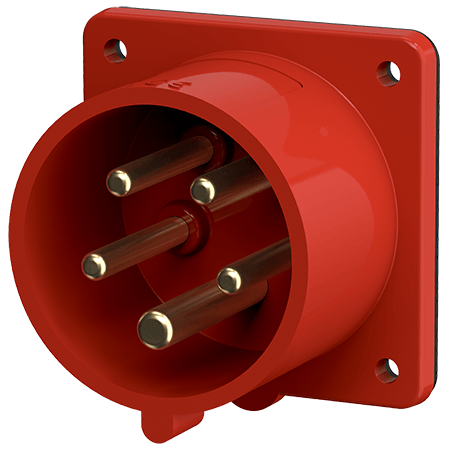

Panel mounted inlet 1409
Ampere
16 A
32 A
Poles
5 p
Voltage
400 V
Clock position
6 h
screw terminals
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Part no.
1409
EAN
4015394010395
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted inlet 1409
Ampere
32 A
Poles
5 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Weight
173 g
Certifications
VDE (ÜG)
CQC
Datasheets & Downloads
Panel mounted inlet 1409
Product info
Panel mounted inlet 1409
PDF, 151 KB
Manufacturer‘s declaration
Panel mounted inlet 1409
PDF, 37 KB
CAD data STP
Panel mounted inlet 1409
ZIP, 312 KB
CAD data 3D DWG
Panel mounted inlet 1409
ZIP, 873 KB
Dimensional drawing portrait
Panel mounted inlet 1409
PNG, 84 KB
Dimensional drawing landscape format
Panel mounted inlet 1409
PNG, 84 KB
Directives
Panel mounted inlet 1409
REACh
RoHS
