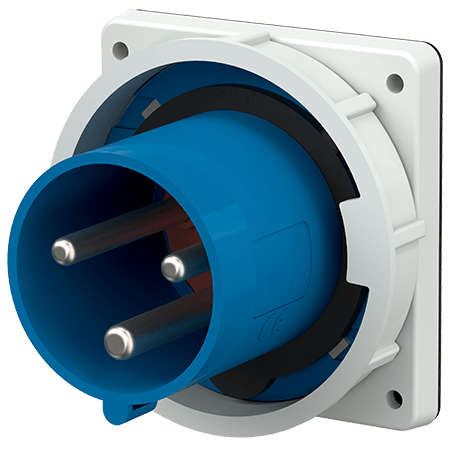

MENNEKES Panel mounted inlet 3665
MENNEKES Panel mounted inlet 3665 images3d

Panel mounted inlet 3665

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • Part no.3665
  • EAN4015394020530
  • Std. Pack. 5

Technical specifications

Panel mounted inlet 3665

Ampere 125 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 907 g
Certifications CQC

Directives

Panel mounted inlet 3665

Appropriate accessories

Panel mounted inlet 3665

MENNEKES Protective cover 40788

Protective cover

Part no. 40788

for watertight plugs, wall mounted and panel mounted inlets 125 A, 3 p - 5 p
