Show all Inlets / Show all Panel mounted inlet

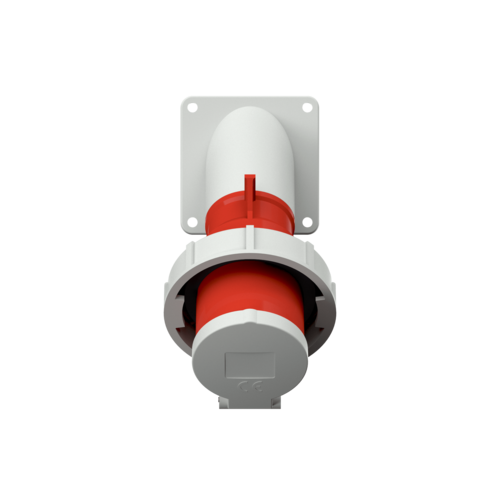

MENNEKES Panel mounted inlet 480
MENNEKES Panel mounted inlet 480 images3d

Panel mounted inlet 480

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • with hinged lid
  • Part no.480
  • EAN4015394003359
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 480

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 200 g
Certifications EAC

Datasheets & Downloads

Panel mounted inlet 480

Product infoPanel mounted inlet 480 PDF, 148 KB
Manufacturer‘s declarationPanel mounted inlet 480 PDF, 37 KB
CAD data STPPanel mounted inlet 480 ZIP, 383 KB
CAD data 3D DWGPanel mounted inlet 480 ZIP, 1 MB
Dimensional drawing portraitPanel mounted inlet 480 PNG, 103 KB
Dimensional drawing landscape formatPanel mounted inlet 480 PNG, 103 KB

Directives

Panel mounted inlet 480

REACh
RoHS

Appropriate accessories

Panel mounted inlet 480

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p
