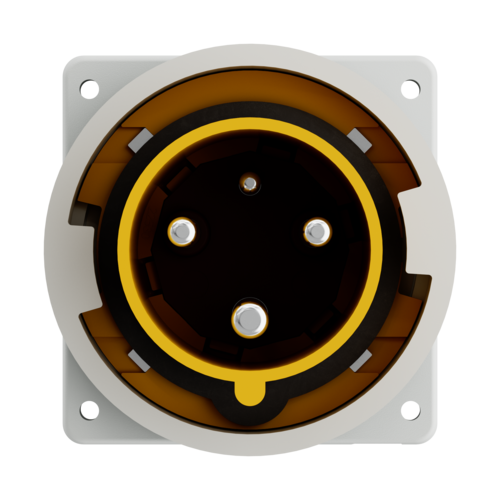

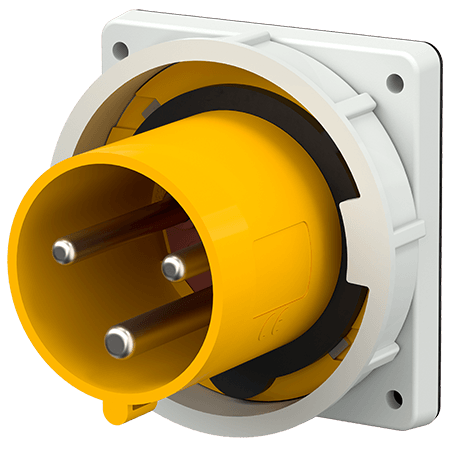

MENNEKES Panel mounted inlet 835
MENNEKES Panel mounted inlet 835 images3d

Panel mounted inlet 835

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.835
  • EAN4015394116929
  • Std. Pack. 5

Technical specifications

Panel mounted inlet 835

Ampere 63 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 478 g
Certifications CQC

Directives

Panel mounted inlet 835

Appropriate accessories

Panel mounted inlet 835

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p
