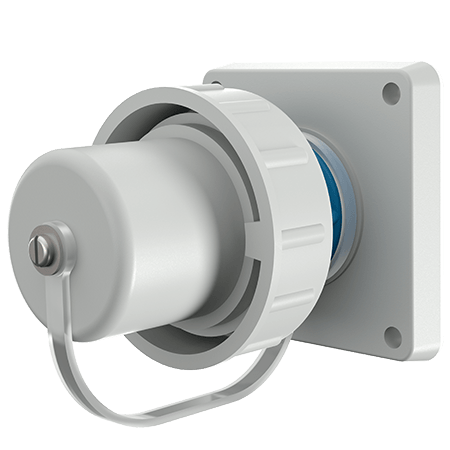

MENNEKES Panel mounted inlet SCHUKO® 10852

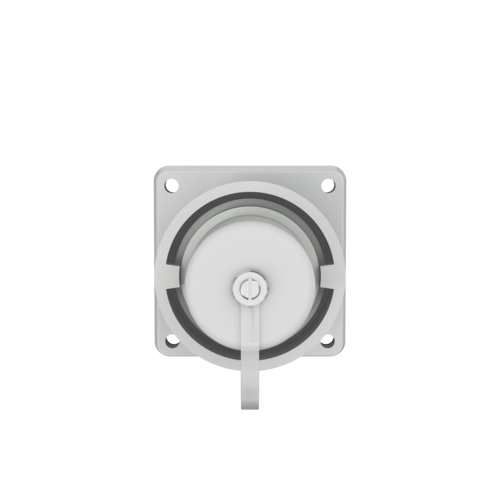

MENNEKES Panel mounted inlet SCHUKO® 10852 images3d

Panel mounted inlet SCHUKO® 10852

Ampere 16 A
Poles
Voltage
  • screw terminals
  • with combined PE-conductor acc. to german and french-belgian standard
  • with bayonet ring
  • protective cap attached by a strap
  • Part no.10852
  • EAN4015394035640
  • Std. Pack. 10

Technical specifications

Panel mounted inlet SCHUKO® 10852

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 138 g
Certifications VDE

Datasheets & Downloads

Panel mounted inlet SCHUKO® 10852

Product infoPanel mounted inlet SCHUKO® 10852 PDF, 138 KB
CAD data STPPanel mounted inlet SCHUKO® 10852 ZIP, 396 KB
CAD data 3D DWGPanel mounted inlet SCHUKO® 10852 ZIP, 772 KB
Dimensional drawing portraitPanel mounted inlet SCHUKO® 10852 PNG, 48 KB
Dimensional drawing landscape formatPanel mounted inlet SCHUKO® 10852 PNG, 48 KB

Directives

Panel mounted inlet SCHUKO® 10852

REACh
RoHS
