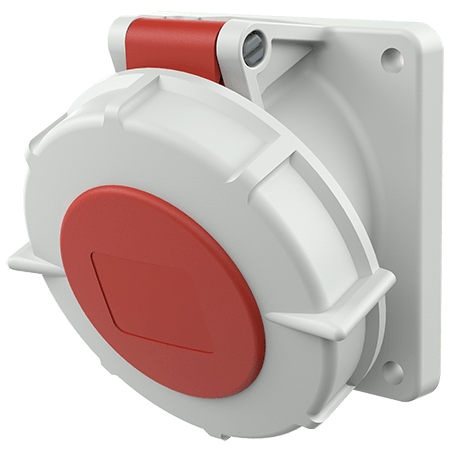

MENNEKES Panel mounted socket 1103

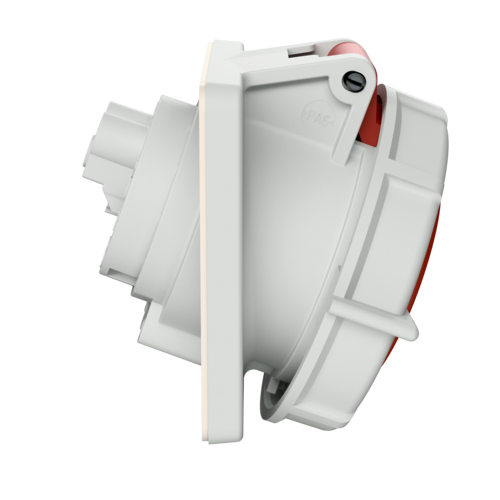

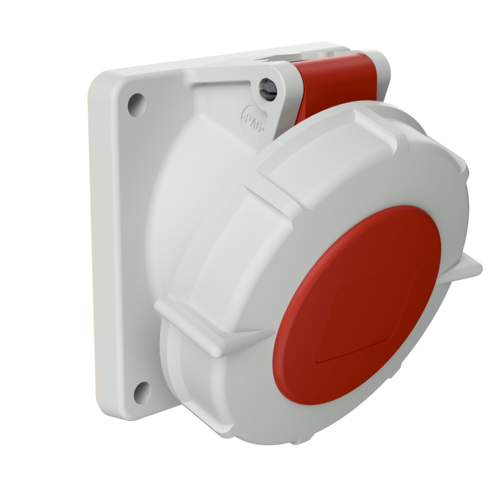

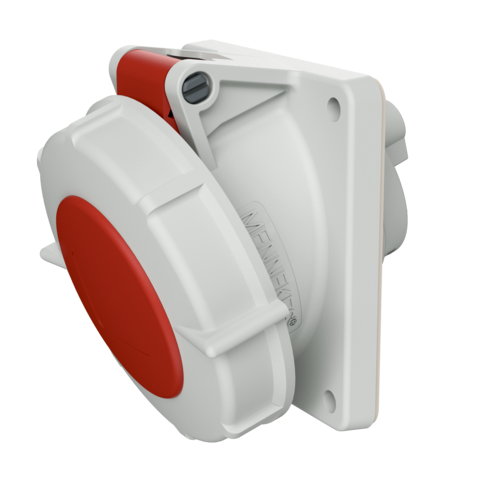

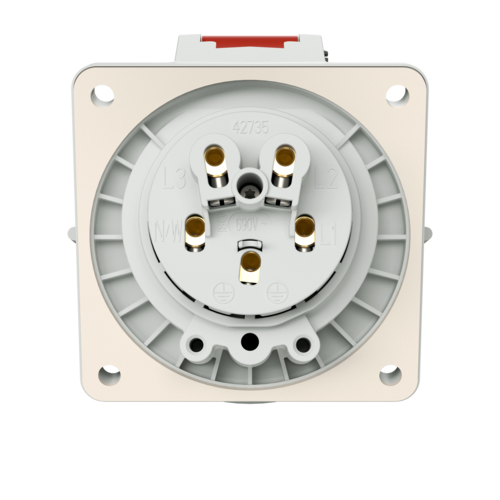

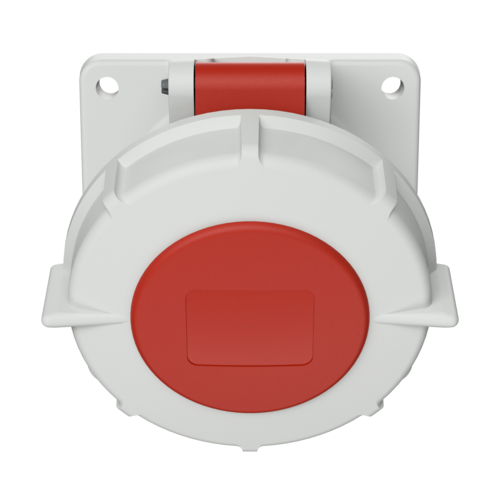

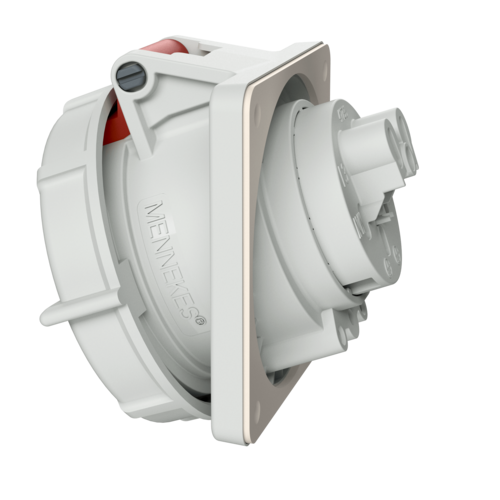

MENNEKES Panel mounted socket 1103 images3d

Panel mounted socket 1103

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • standard flange dimensions
  • 20° inclination
  • optional fitted with auxiliary contact
  • Part no.1103
  • EAN4015394203018
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1103

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 224 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 1103

Product infoPanel mounted socket 1103 PDF, 187 KB
CAD data STPPanel mounted socket 1103 ZIP, 977 KB
CAD data 3D DWGPanel mounted socket 1103 ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket 1103 PNG, 100 KB
Dimensional drawing landscape formatPanel mounted socket 1103 PNG, 100 KB

Directives

Panel mounted socket 1103

REACh
RoHS

Appropriate accessories

Panel mounted socket 1103

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
