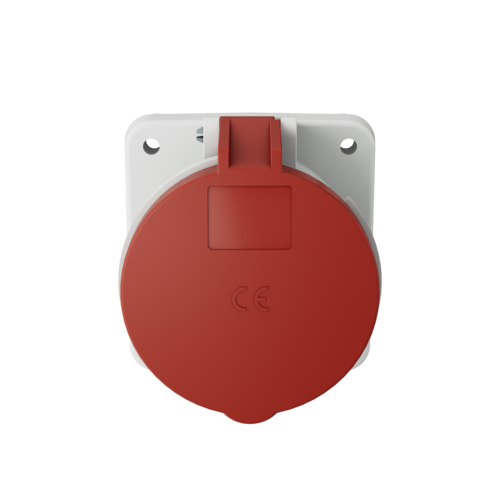

MENNEKES Panel mounted socket 1248A
MENNEKES Panel mounted socket 1248A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket 1248A

Ampere 63 A
Poles
Voltage
Clock position
  • straight
  • products with pilot contact on request
  • Part no.1248A
  • EAN4015394008781
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted socket 1248A

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 555 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 1248A

Product infoPanel mounted socket 1248A PDF, 170 KB
Manufacturer‘s declarationPanel mounted socket 1248A PDF, 37 KB
CAD data STPPanel mounted socket 1248A ZIP, 580 KB
CAD data 3D DWGPanel mounted socket 1248A ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket 1248A PNG, 88 KB
Dimensional drawing landscape formatPanel mounted socket 1248A PNG, 89 KB

Videos

Panel mounted socket 1248A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted socket 1248A

REACh
RoHS
