MENNEKES Panel mounted socket 1385ZI
MENNEKES Panel mounted socket 1385ZI images3d

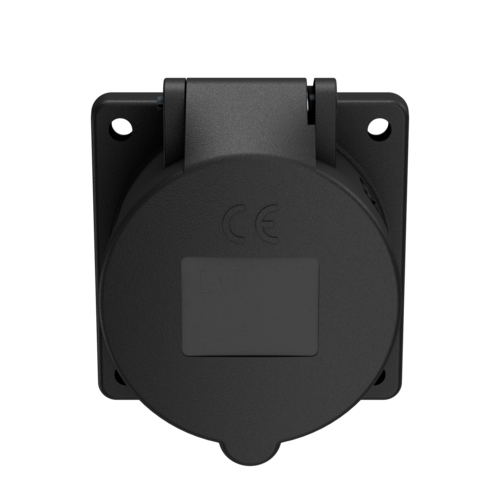

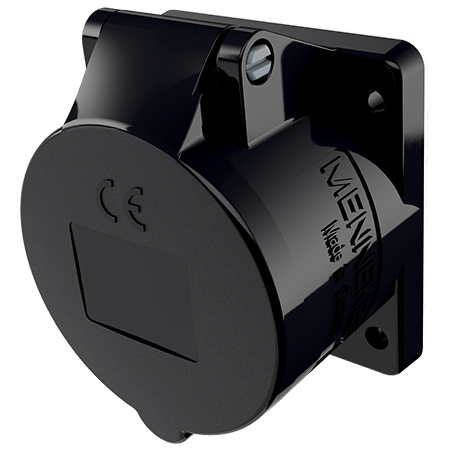

Panel mounted socket 1385ZI

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.1385ZI
  • EAN4015394212393
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1385ZI

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 184 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 1385ZI

Product infoPanel mounted socket 1385ZI PDF, 348 KB
Dimensional drawing portraitPanel mounted socket 1385ZI PNG, 262 KB
Dimensional drawing landscape formatPanel mounted socket 1385ZI PNG, 278 KB

Directives

Panel mounted socket 1385ZI

REACh
RoHS

Appropriate accessories

Panel mounted socket 1385ZI

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
