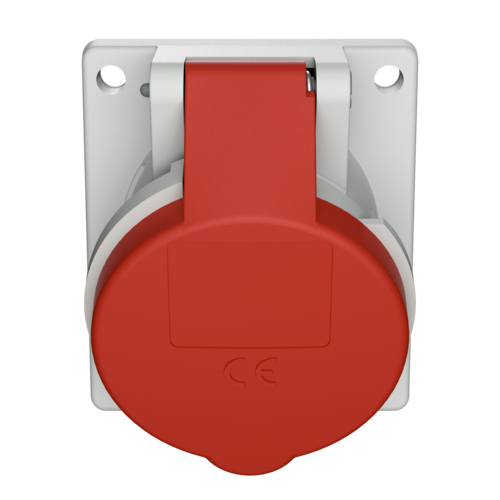

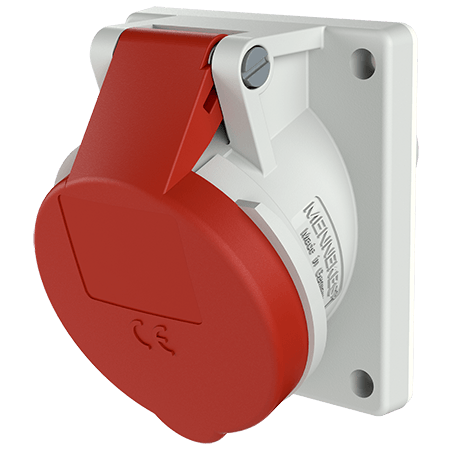

MENNEKES Panel mounted socket 1467
MENNEKES Panel mounted socket 1467 images3d

Panel mounted socket 1467

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1467
  • EAN4015394011231
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1467

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 183 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 1467

Product infoPanel mounted socket 1467 PDF, 126 KB
Manufacturer‘s declarationPanel mounted socket 1467 PDF, 89 KB
CAD data STPPanel mounted socket 1467 ZIP, 904 KB
CAD data 3D DWGPanel mounted socket 1467 ZIP, 2 MB
Mounting instructionsPanel mounted socket 1467 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1467 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted socket 1467 PNG, 49 KB

Directives

Panel mounted socket 1467

REACh
RoHS
