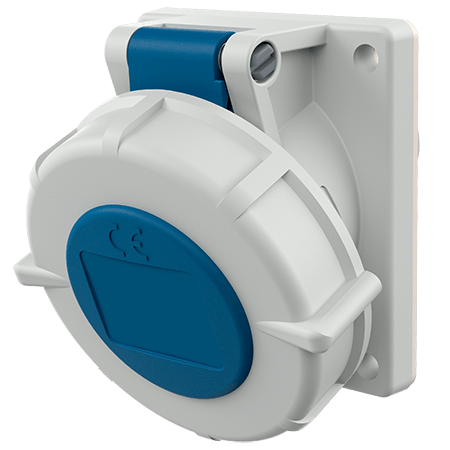

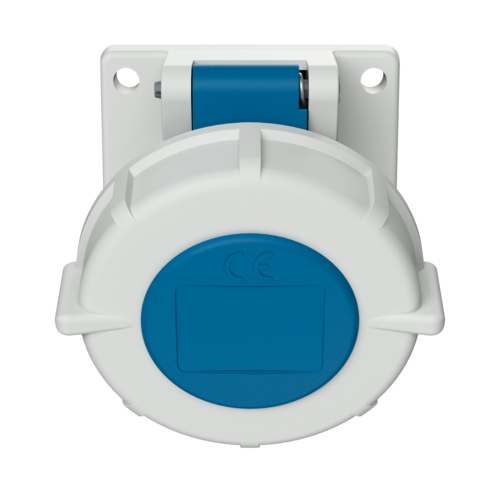

MENNEKES Panel mounted socket 1475
MENNEKES Panel mounted socket 1475 images3d

Panel mounted socket 1475

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • 32 A sockets optional fitted with auxiliary contact
  • Part no.1475
  • EAN4015394011330
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1475

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 151 g
Certifications VDE

Directives

Panel mounted socket 1475
