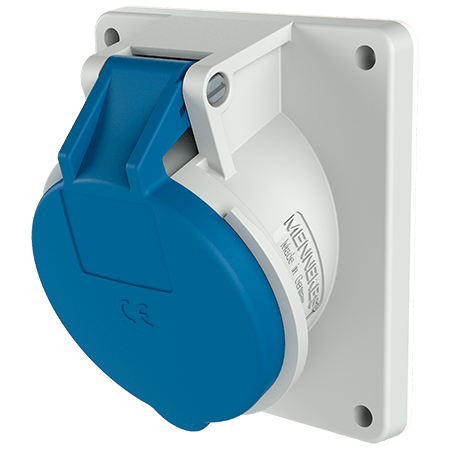

Panel mounted socket 1492

Name: Panel mounted socket
Brand: MENNEKES
SKU: 1492

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
20° inclination

sockets optional fitted with auxiliary contact

Part no.1492
EAN4015394011545
Std. Pack. 10

Technical specifications

Panel mounted socket 1492

Ampere	32 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	100x92 mm
Fixing hole	85x77 mm
Inclination	20 °
Weight	236 g
Certifications	VDE

Datasheets & Downloads

Panel mounted socket 1492

Product infoPanel mounted socket 1492 PDF, 156 KB

Manufacturer‘s declarationPanel mounted socket 1492 PDF, 37 KB

CAD data STPPanel mounted socket 1492 ZIP, 1 MB

CAD data 3D DWGPanel mounted socket 1492 ZIP, 2 MB

Dimensional drawing portraitPanel mounted socket 1492 PNG, 49 KB

Dimensional drawing landscape formatPanel mounted socket 1492 PNG, 49 KB

Directives

Panel mounted socket 1492

REACh

RoHS
