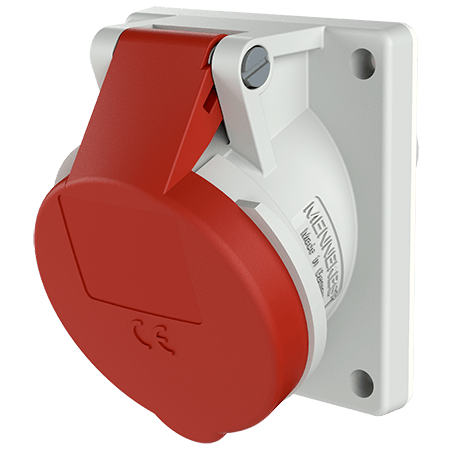

Panel mounted socket 1496

Name: Panel mounted socket
Brand: MENNEKES
SKU: 1496

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
20° inclination

sockets optional fitted with auxiliary contact

Part no.1496
EAN4015394011583
Std. Pack. 10

Technical specifications

Panel mounted socket 1496

Ampere	32 A
Poles	4 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	100x92 mm
Fixing hole	85x77 mm
Inclination	20 °
Weight	250 g
Certifications	VDE

Datasheets & Downloads

Panel mounted socket 1496

Product infoPanel mounted socket 1496 PDF, 154 KB

CAD data STPPanel mounted socket 1496 ZIP, 1,018 KB

CAD data 3D DWGPanel mounted socket 1496 ZIP, 2 MB

Dimensional drawing portraitPanel mounted socket 1496 PNG, 49 KB

Dimensional drawing landscape formatPanel mounted socket 1496 PNG, 49 KB

Directives

Panel mounted socket 1496

REACh

RoHS

Appropriate products

Panel mounted socket 1496 with IP44

Plug PowerTOP Xtra with ErgoCONTACT

Part no. 13516

Protection type: IP54
Ampere: 32 A
Poles: 4 p
Voltage: 400 V
Connection technology: Screw terminals, ErgoCONTACT®

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14516

Protection type: IP54
Ampere: 32 A
Poles: 4 p
Voltage: 400 V
Connection technology: Screw terminals, ErgoCONTACT®

Appropriate accessories

Panel mounted socket 1496

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
