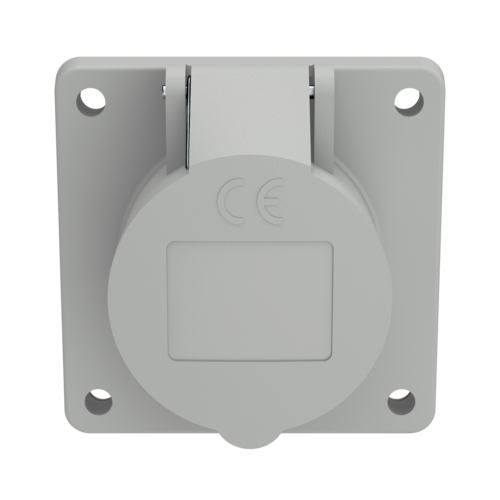

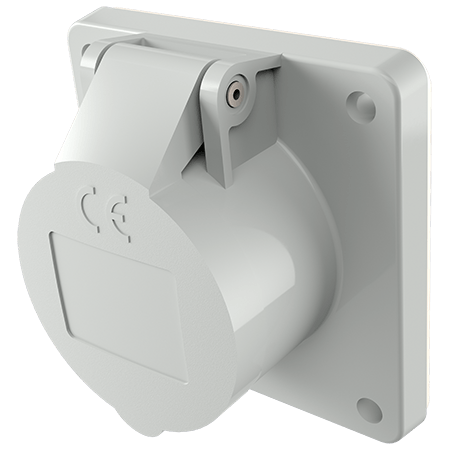

MENNEKES Panel mounted socket 1595
MENNEKES Panel mounted socket 1595 images3d

Panel mounted socket 1595

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • also suitable for cable ducts and flush mounted installation boxes
  • Part no.1595
  • EAN4015394178866
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1595

Ampere 32 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 452 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 1595

Product infoPanel mounted socket 1595 PDF, 188 KB
Dimensional drawing portraitPanel mounted socket 1595 PNG, 86 KB
Dimensional drawing landscape formatPanel mounted socket 1595 PNG, 86 KB

Directives

Panel mounted socket 1595

REACh
RoHS

Appropriate accessories

Panel mounted socket 1595

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136
